Renault Koleos Service Repair Manual: Ignition

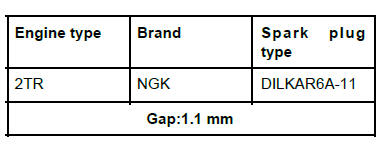

Ignition: Specifications

2TR

Ignition

Coils: Removal - Refitting

2TR

Ignition

REMOVAL

  • Position the vehicle on a two-post lift.
  • Disconnect the battery.
  • Remove:
    • the engine cover,
    • The air resonator located on the rocker cover.

Ignition

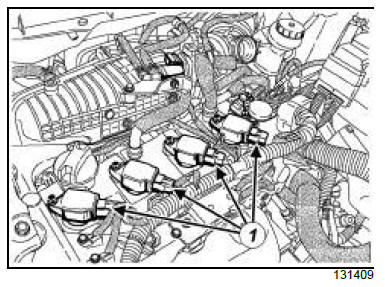

  • Disconnect the connectors (1) from the ignition coils.

OPERATION FOR REMOVAL OF PART CONCERNED

Ignition

Note: Never drop or bang an ignition coil.

Never remove an ignition coil.

  • Remove:

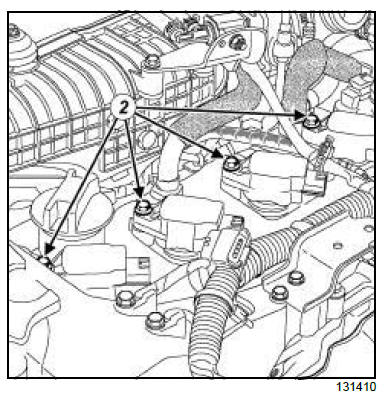

    • the ignition coil bolts (2) ,
    • the ignition coils.

REFITTING

I - REFITTING PREPARATION OPERATION

  • If necessary, replace:
    • the ignition coils,
    • the ignition coil bolts.

Ignition

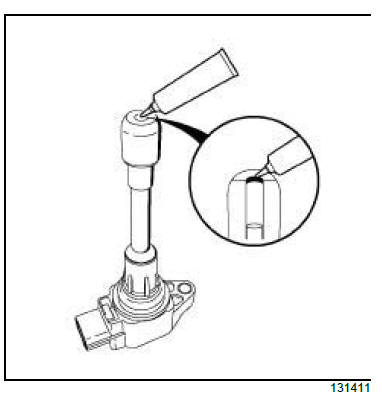

  • Put a bead of FLUORSTAR 2L 2 mm in diameter on the internal perimeter of the high-tension caps of the ignition coils.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the ignition coils,
    • the ignition coil bolts.
  • Torque tighten the ignition coil bolts (7 Nm).

III - FINAL OPERATION.

  • Connect the ignition coil connectors.
  • Refit:
    • the air resonator located on the rocker cover ,
    • the engine cover.
  • Connect the battery.

Plugs: Removal - Refitting

2TR

Ignition

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift .
  • Disconnect the battery.
  • Remove:
    • the engine cover,
    • the air resonator located on the rocker cover,
    • the ignition coils.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Ignition

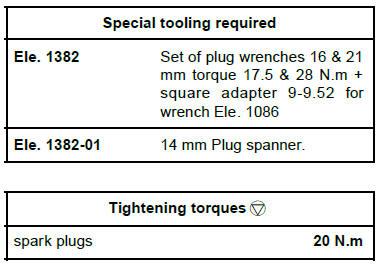

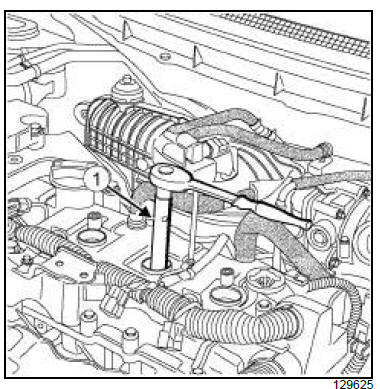

  • Remove the spark plugs using the (Ele. 1382) (1) equipped with the (Ele. 1382-01).

REFITTING

I - REFITTING PREPARATION OPERATION

  • Replace the spark plugs (if necessary).

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit the spark plugs.
  • Torque tighten the spark plugs (20 N.m) using the tool (Ele. 1382) with the tool (Ele. 1382-01) attached.

III - FINAL OPERATION

  • Refit:
    • the ignition coils
    • the air resonator located on the rocker cover
    • the engine cover.
  • Connect the battery.
    Starter: Removal - Refitting

    Petrol injection
