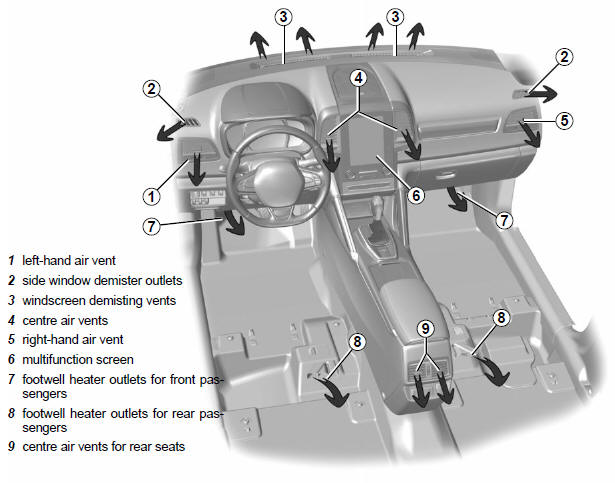

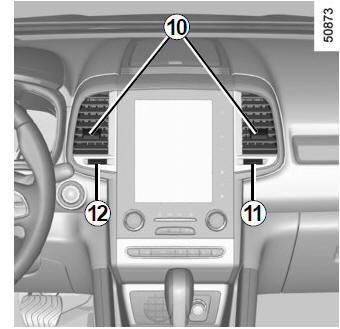

Centre air vents. Air flow Move the control knob 11 or 12 (beyond the resistance point). 11 left or 12 right: closed. 11 right or 12 left: maximum air flow. Direction Move the cursors 10 to the desired position.

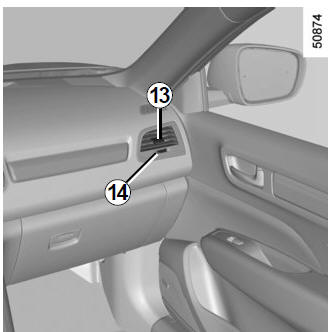

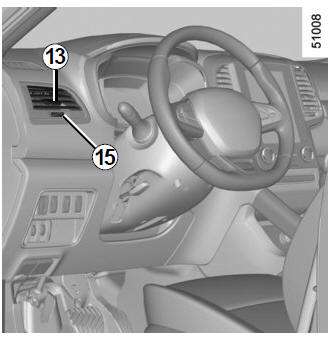

Side air vents Air flow Move the control knob 14 or 15 (beyond the resistance point). 14 left or 15 right: closed. 14 right or 15 left: maximum air flow. Direction Move the cursors 13 to the desired position.
|
Renault Koleos Service Repair Manual > Heating: Mixer motor: Removal -
Refitting
LEFT-HAND DRIVE, and AIR CON 02 REMOVAL I - REMOVAL PREPARATION OPERATION 1 - Left-hand mixer motor Remove: the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment), the centre panel lower left-hand cover, the A pillar air distribution duct (see 6 ...
