Electrical equipment

IMPORTANT To prevent the pyrotechnic components from being permanently deactivated or triggered (airbags or pretensioners), wait for at least 3 min after disconnecting the battery.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Disconnect the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .
  • Remove the centre console (see Centre console: Removal - Refitting) (57A, Interior equipment).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

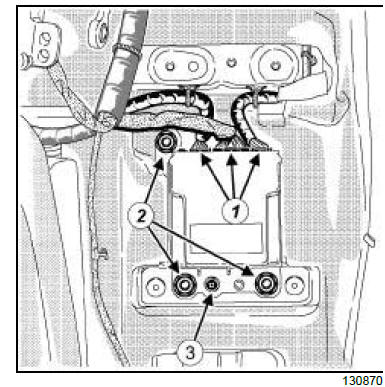

  • Disconnect the airbag computer connectors (1) .
  • Remove:
    • the airbag computer bolts (2) ,
    • the airbag computer bolt (3) ,
    • the airbag computer.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the airbag computer,
    • the airbag computer bolt,
    • the bolts from the airbag computer.

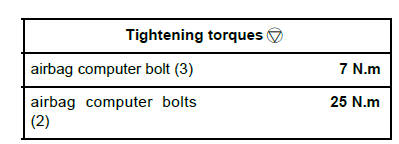

  • Torque tighten:
    • the airbag computer bolt (3) (7 N.m),
    • the airbag computer bolts (2) (25 N.m),
  • Connect the airbag computer connectors.

II - FINAL OPERATION.

  • Refit the centre console (see Centre console: Removal - Refitting) (57A, Interior equipment).
  • Connect the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .
