I - LIST OF COMPONENTS

  1. UCH
  2. Passenger compartment fuse and relay box
  3. Remote door locking control
  4. Central locking switch
  5. Tailgate opening switch
  6. Tailgate locking switch
  7. Opening aerials

II - POSITION OF THE COMPONENTS

1 - UCH

Electrical equipment

The UCH is located in the dashboard, behind the passenger compartment relay unit; to remove it (see 87B, Passenger compartment connection unit, UCH: Removal - Refitting, page 87B-1) .

2 - Passenger compartment fuse and relay box

Electrical equipment

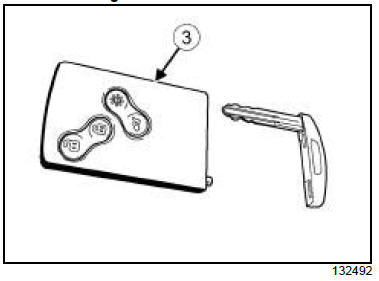

3 - Door locking remote control

Electrical equipment

4 - Door locking switch

Electrical equipment

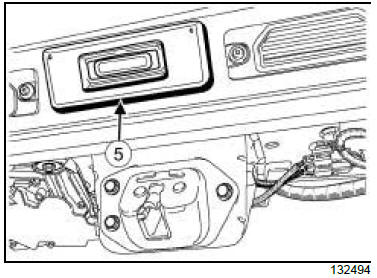

5 - Tailgate opening switch

Electrical equipment

6 - Tailgate locking switch

Electrical equipment

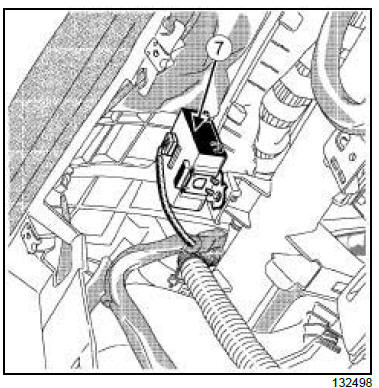

7 - Opening aerials

Electrical equipment

Opening aerials in the front door handles.

Electrical equipment

Opening aerial in the rear absorber: it is not necessary to remove the rear bumper.

Electrical equipment

Keyless entry computer: to access the keyless entry computer, the glove box must be removed.

    Opening element management

    Opening aerial: Removal - Refitting
