NAVIGATION AID 2 or NAVIGATION AID 4

REMOVAL

I - REMOVAL PREPARATION OPERATION

Electrical equipment

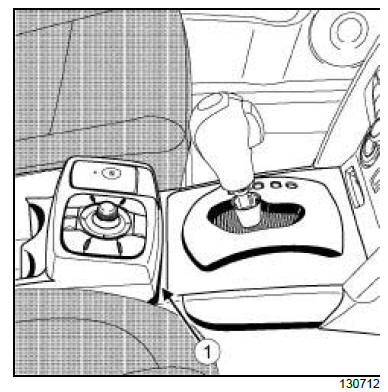

  • Remove the centre console (1) (see Centre console: Removal - Refitting) (57A, Interior equipment).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

  • Disconnect the connector from the central control.
  • Remove:

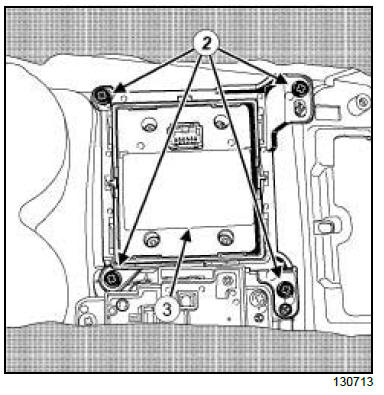

    • the bolts (2) ,
    • the central control (3) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the central control,
    • the central control bolts.
  • Connect the connector to the central control.

II - FINAL OPERATION.

  • Refit the centre console (see Centre console: Removal - Refitting) (57A, Interior equipment).
