Renault Koleos Service Repair Manual: Headlining light: Removal - Refitting

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

  • Remove the headlining light (1) by unclipping the clips (2) using a small flat-blade screwdriver.
  • Disconnect the connector.

Electrical equipment

  • Remove the bolt (3) .
  • Unclip the translucent cover at (4) .

Electrical equipment

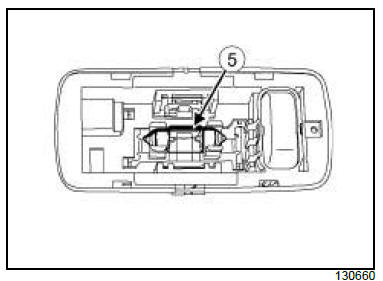

  • Remove the bulb (5) .

REFITTING

REFITTING OPERATION FOR PART CONCERNED

  • When replacing a bulb, use an approved 12V 8W bulb.
  • Refit the bulb.
  • Clip the translucent cover in place.
  • Refit the bolt.
  • Connect the connector.
  • Refit the headlining light.
