Renault Koleos Service Repair Manual: 3rd brake light: Removal - Refitting

Renault Koleos Service Repair Manual / Electrical equipment / Rear lighting / 3rd brake light: Removal - Refitting

REMOVAL - REFITTING

I - REMOVAL PREPARATION OPERATION

  • Remove the tailgate upper trim (see Tailgate trim: Removal - Refitting) (73A, Non-side opening elements trim).

Electrical equipment

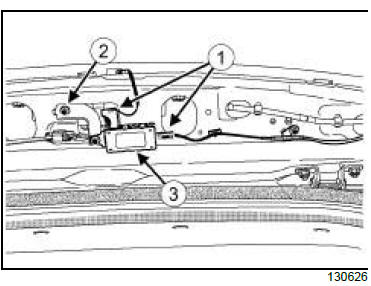

  • Disconnect the connectors (1) .
  • Remove:
    • the bolt (2) ,
    • the clip (3) .
  • Move aside the amplifier and its support.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

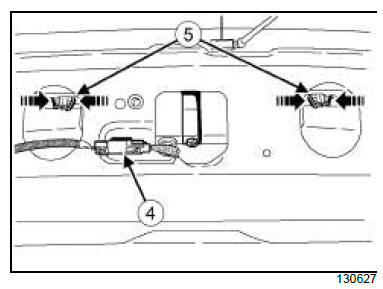

  • Disconnect the connector (4) .
  • Unclip clips (5) .

Electrical equipment

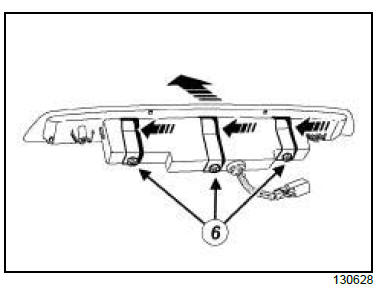

  • Remove:
    • the clips (6) ,
    • the high level brake light.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • When replacing the high level brake light bulb, replace the high level brake light assembly.
  • Refit the high level brake light.
  • Connect the connector.

II - FINAL OPERATION.

  • Fit the amplifier and its support in their original location.
  • Refit:
    • the clip,
    • the bolt.
  • Connect the connectors.
  • Refit the tailgate upper trim (see Tailgate trim: Removal - Refitting) (73A, Non-side opening elements trim).
