Renault Koleos Service Repair Manual: Front side door frame seal: Removal - Refitting

Renault Koleos Service Repair Manual / Sealing and soundproofing / Opening element sealing / Front side door frame seal: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the front door sill lining (see Front door sill lining: Removal - Refitting) (MR 421, 71A, Body internal trim),
    • the cab floor trim (see Cab floor lining: Removal - Refitting) (MR 421, 71A, Body internal trim),
    • the B-pillar trim (see B-pillar trim: Removal - Refitting) (MR 421, 71A, Body internal trim).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Opening element sealing

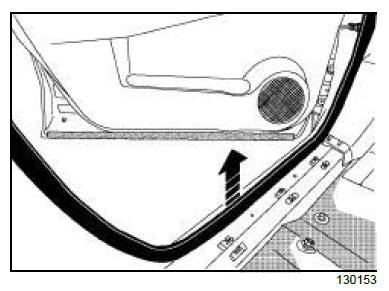

  • Remove the front side door frame seal.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the front side door frame seal.

II - FINAL OPERATION.

  • Refit:
    • the B-pillar trim (see B-pillar trim: Removal - Refitting) (MR 421, 71A, Body internal trim),
    • the cab floor trim (see Cab floor lining: Removal - Refitting) (MR 421, 71A, Body internal trim),
    • the front door sill lining (see Front door sill lining: Removal - Refitting) (MR 421, 71A, Body internal trim).
