Renault Koleos Owners Manual: Parking brake

Parking brake

Parking brake

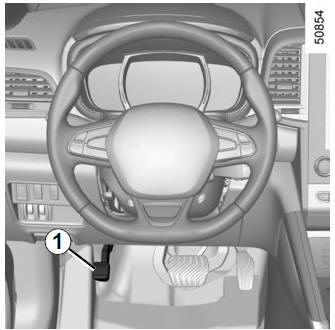

To release: Depress the parking brake 1 firmly.

The red warning light on the instrument panel will come on if you are driving with an incorrectly released parking brake.

To apply: Depress the parking brake 1 firmly.

Check that the vehicle is immobilised.

The warning light on the instrument panel will come on.

Make sure that the parking brake is properly released when driving (red indicator light off), otherwise overheating, or even damage, may occur.
