Renault Koleos Service Repair Manual: Centre console: Removal - Refitting

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Interior equipment

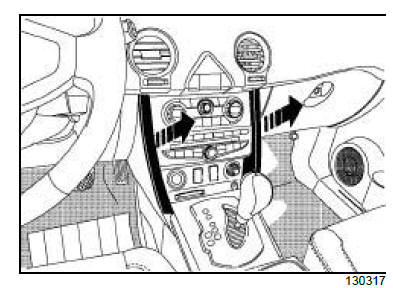

  • Unclip the trims.

Interior equipment

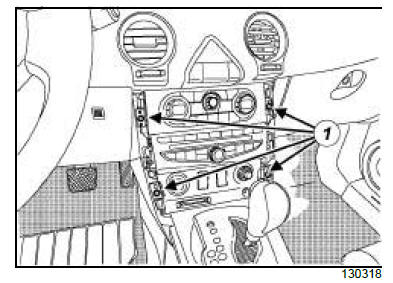

  • Remove the bolts (1) .

6-SPEED MANUAL GEARBOX

Interior equipment

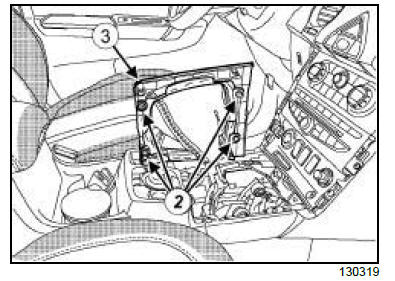

  • Unclip the gear lever plate (3) .
  • Remove:
    • the bolts (2) ,
    • the gear lever plate (3) .

6-SPEED AUTOMATIC GEARBOX

Interior equipment

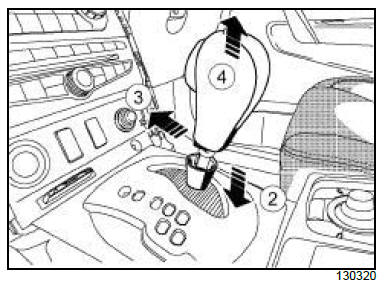

  • Remove:
    • the gear lever cover (2) ,
    • the pin (3) .
  • Unclip the gear lever (4) .

Interior equipment

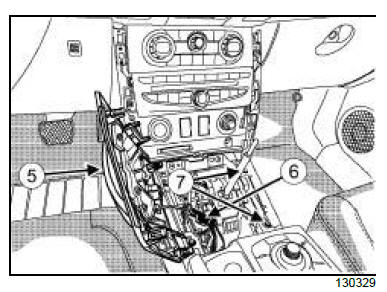

  • Unclip the gear lever plate (5) .
  • Disconnect the connector (6) .
  • Remove the bolts (7) .

Interior equipment

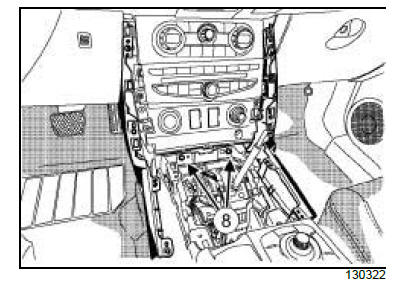

  • Partially remove the trim,
  • Remove the bolts (8) .

Interior equipment

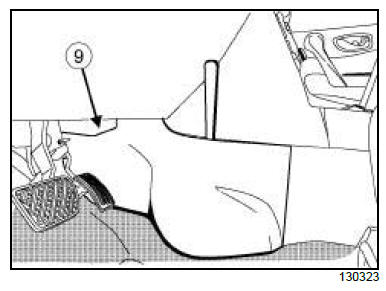

  • Remove the lower cover (9) .

Interior equipment

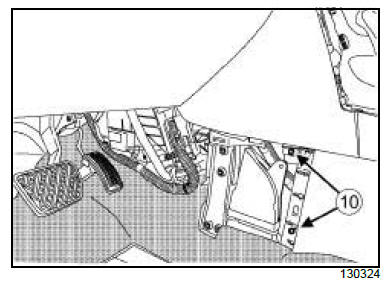

  • Remove the bolts (10) .

Interior equipment

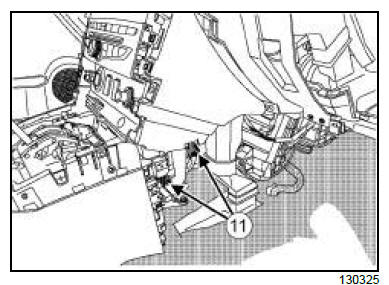

  • Disconnect the connectors (11) .
  • Move the front seats forward.

Interior equipment

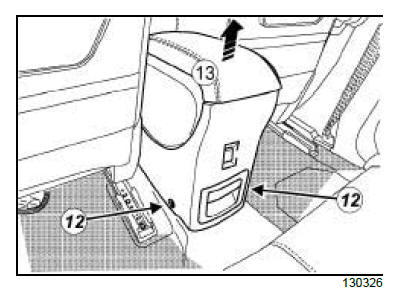

  • Remove:
    • the bolts (12) ,
    • the centre console (13) .

REFITTING

REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the centre console,
    • the bolts (12) .
  • Push the front seats back.
  • Connect the connectors (11) .
  • Refit:
    • the bolts (10) ,
    • the lower cover (9) ,
    • the bolts (8)
    • the trim.

6-SPEED MANUAL GEARBOX

  • Refit:
    • the bolts (2) ,
    • the gear lever plate (3) .
  • Clip on the gear lever plate.

6-SPEED AUTOMATIC GEARBOX

  • Refit the bolts (7) .
  • Connect the connector (6) .
  • Clip:
    • the gear lever plate (5) ,
    • the gear lever (4) .
  • Refit:
    • the pin (3) ,
    • the gear lever cover (2) .



  • Refit the bolts (1) .
  • Clip on the trims.
