Renault Koleos Service Repair Manual: Lever: Removal - Refitting

Renault Koleos Service Repair Manual / Chassis / Electronic parking brake / Lever: Removal - Refitting

FOOT BRAKE AUTOMATIC CONTROL

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the centre console.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electronic parking brake

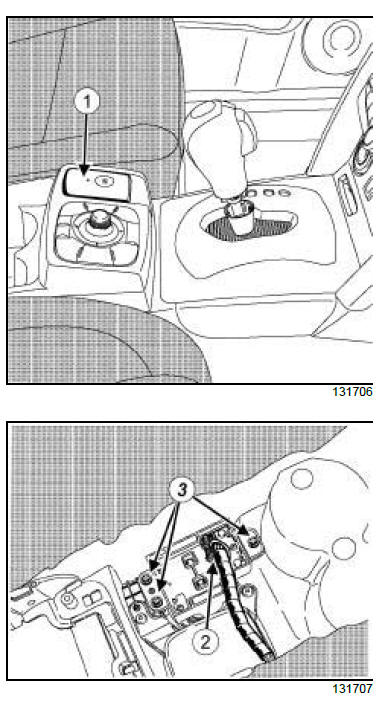

  • Disconnect the connector (2) from the electronic parking brake lever (1) .
  • Remove:
    • the bolts (3) from the electronic parking brake lever,
    • the electronic parking brake lever,

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the electronic parking brake lever,
    • the bolts of the electronic parking brake lever.
  • Connect the electronic parking brake handle connector.

II - FINAL OPERATION.

  • Refit the centre console (see Centre console: Removal - Refitting) (57A, Interior equipment).
