Renault Koleos Service Repair Manual: Mechanical gear control cable: Adjustment

Renault Koleos Service Repair Manual / Chassis / Mechanical component controls / Mechanical gear control cable: Adjustment

6-SPEED MANUAL GEARBOX

Mechanical component controls

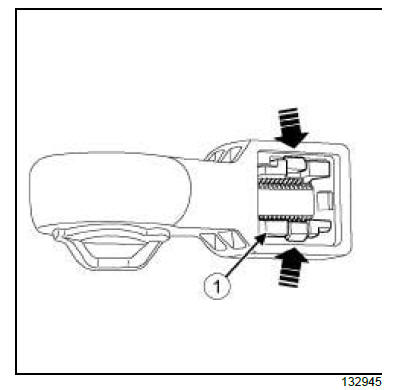

  • Unlock the selector lever cable by pressing on the adjustment clip (1) and pushing it downwards.

Mechanical component controls

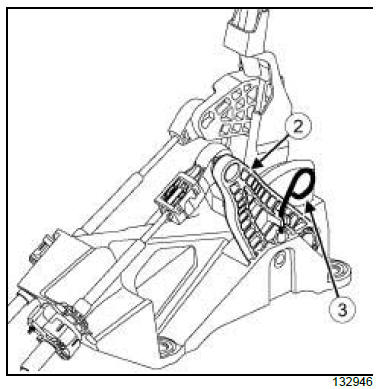

  • Clip the selector lever cable onto the gear lever (2) of the gear control unit.
  • Push the pin (3) (3 mm) on the gear control unit and the selector lever of the gear control unit.
  • Put the gear control unit in 4th gear.
  • Lock the selector lever cable by compressing the adjustment clip (1) .
  • Remove the pin (3) .
  • Check that this gear selection is correct.
