6-SPEED MANUAL GEARBOX

Mechanical component controls

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the centre console (see Centre console: Removal - Refitting) (57A, Interior equipment).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Mechanical component controls

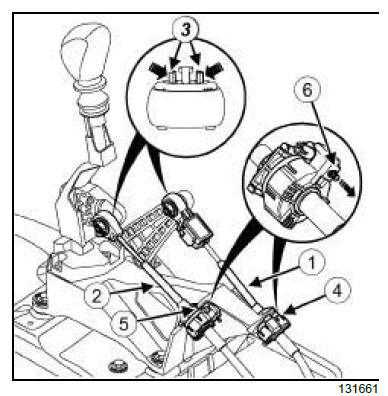

  • Unclip:
    • the selector lever cable (1) from the gear control unit by pressing on the brackets (3) ,
    • the selector cable stop (4) from the gear control unit by pulling on the locking bracket (6) ,
    • the cable (2) from the gear control unit gear lever by pressing on the brackets (3) ,
    • the gear lever cable stop (5) from the gear control unit by pulling on the locking bracket (6) .

Mechanical component controls

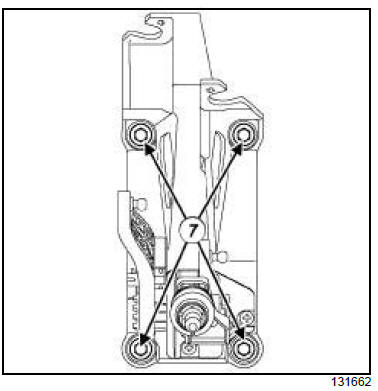

  • Remove:
    • the bolts (7) from the gear control unit,
    • the gear control unit.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the gear control unit,
    • the bolts on the gear control unit.
  • Torque tighten the gear control unit bolts (7 N.m).
  • Clip:
    • the gear lever cable stop on the gear control unit by pulling on the locking bracket,
    • the gear lever cable on the gear control unit,
    • the selector lever cable stop on the gear control unit by pulling on the locking bracket,
    • the selector lever cable on the gear control unit.

II - FINAL OPERATION.

  • Adjust the selector lever cable (see 37A, Mechanical component controls, Mechanical gear control cable: Adjustment, page 37A-84) .
  • Refit the centre console (see Centre console: Removal - Refitting) (57A, Interior equipment).

6-SPEED AUTOMATIC GEARBOX or VARIABLE GEARBOX

Mechanical component controls

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Disconnect the battery (see Battery: Removal - Refitting) (80A, Battery).
  • Remove the centre console (see Centre console: Removal - Refitting) (57A, Interior equipment).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Mechanical component controls

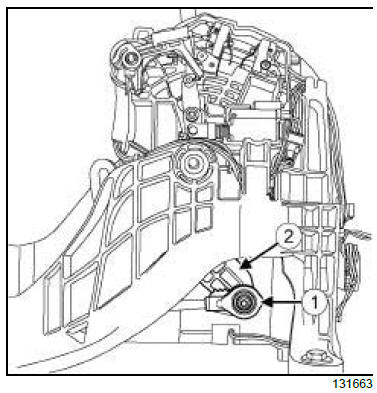

  • Unclip the automatic gearbox control cable (1) from the lever of the gear control unit (2) .

Mechanical component controls

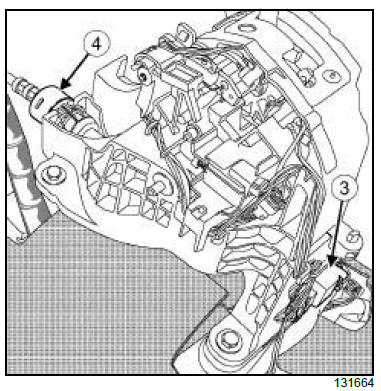

  • Unclip:
    • the connector (3) from the gear control unit,
    • the automatic gearbox control cable stop (4) from the gear control unit.
  • Move aside the automatic gearbox control cable.

Mechanical component controls

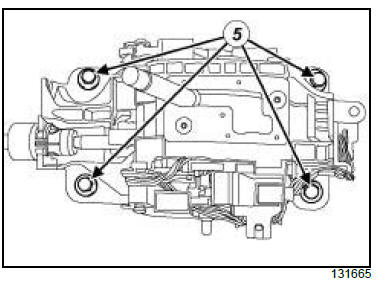

  • Remove:
    • the gear control unit bolts (5) ,
    • the gear control unit.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the gear control unit.
    • the gear control unit bolts,
  • Torque tighten the gear control unit bolts (6 N.m).
  • Clip:
    • the automatic gearbox control cable stop onto the gear control unit,
    • the connector onto the gear control unit.

Mechanical component controls

  • Clip:

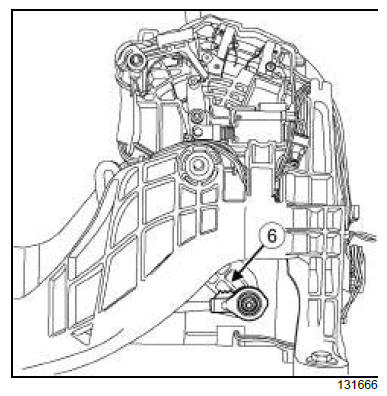

    • the automatic gearbox control cable onto the gear control unit lever by positioning the ribbed side (6) upwards,
    • the automatic gearbox control cable stop onto the gear control unit.

II - FINAL OPERATION

  • Refit the centre console (see Centre console: Removal - Refitting) (57A, Interior equipment).
  • Connect the battery (see Battery: Removal - Refitting) (80A, Battery).
