IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair .



WARNING Prepare for the flow of fluid, and protect the surrounding components.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
  • Remove the rear wheels (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) .
  • Position a pedal press on the brake pedal to limit the outflow of brake fluid.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Rear axle components

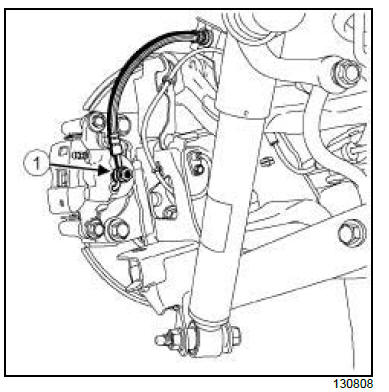

  • Undo the rear brake hose at the rear brake calliper union (1) .
  • Disconnect the rear brake hose from the rear brake calliper.

Rear axle components

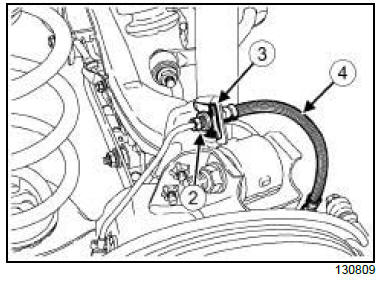

  • Undo the rear brake hose at the pipe connection (2) .
  • Remove:
    • the brake hose clip (3) ,
    • the brake hose (4) .

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always replace the brake hose copper washers on the calliper.
WARNING In order to not damage the brake hose:
  • do not tension the hose,
  • do not twist the hose,
  • check that there is no contact with the surrounding components.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the rear brake hose (4) ,
    • the rear brake hose on the union (2) ,
    • the brake hose clip (3) on the union,

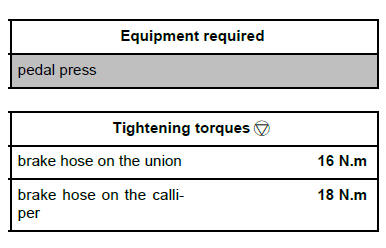

  • Torque tighten the brake hose on the union (16 N.m).

Rear axle components

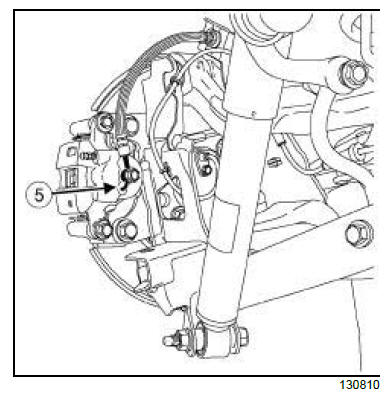

Note: Put the brake hose retaining pin (5) in the calliper hole.
  • Refit the brake hose on the calliper with the new copper washers.
  • Torque tighten the brake hose on the calliper (18 N.m).

III - FINAL OPERATION.

  • Remove the pedal press from the brake pedal.
  • Bleed the brake circuit (see 30A, General information, Braking circuit: Bleed, page 30A-4) .
  • Refit the rear wheels (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) .
  • Check the brake fluid level.
