REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
  • Remove:
    • the front wheel (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) (35A, Wheels and tyres),
    • the front brake hose (see 31A, Front axle components, Front brake hose: Removal - Refitting, page 31A-3) .
    • the front brake pad (see 31A, Front axle components, Front brake pads: Removal - Refitting, page 31A-1) ,
    • the front brake calliper (see 31A, Front axle components, Front brake calliper: Removal - Refitting, page 31A-5) ,
    • the front brake calliper mounting (see 31A, Front axle components, Front brake calliper mounting: Removal - Refitting, page 31A-9) ,
    • the brake disc (see 31A, Front axle components, Front brake disc: Removal - Refitting, page 31A- 13) ,
    • the front driveshaft hub carrier (see 31A, Front axle components, Front driveshaft hub carrier: Removal - Refitting, page 31A-39) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Front axle components

  • Remove:

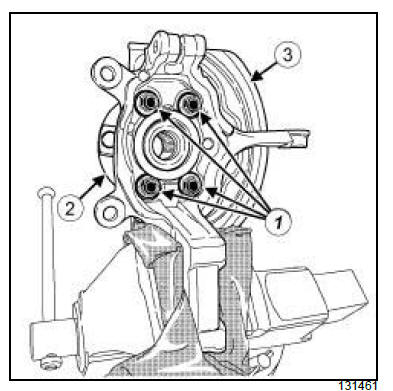

    • the bolts (1) of the front hub carrier bearing,
    • the front hub carrier bearing (2) ,
    • the front brake disc guard (3) .

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always replace the bearing whenever a hub is removed.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the front brake disc guard,
    • the front hub carrier bearing,
    • the bolts of the front hub carrier bearing.

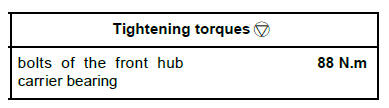

  • Torque tighten the bolts of the front hub carrier bearing (88 N.m).

III - FINAL OPERATION.

  • Refit:
    • the front driveshaft hub carrier (see 31A, Front axle components, Front driveshaft hub carrier: Removal - Refitting, page 31A-39) ,
    • the brake disc (see 31A, Front axle components, Front brake disc: Removal - Refitting, page 31A- 13) ,
    • the front brake calliper mounting (see 31A, Front axle components, Front brake calliper mounting: Removal - Refitting, page 31A-9) ,
    • the front brake calliper (see 31A, Front axle components, Front brake calliper: Removal - Refitting, page 31A-5) ,
    • the front brake pad (see 31A, Front axle components, Front brake pads: Removal - Refitting, page 31A-1) ,
    • the front brake hose (see 31A, Front axle components, Front brake pads: Removal - Refitting, page 31A-1) .
    • the front wheel (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) (35A, Wheels and tyres).
IMPORTANT To avoid any accident, bring the pistons, brake pads and brake discs into contact by depressing the brake pad several times.
