Renault Koleos Service Repair Manual: Automatic gearbox: Identification

6-SPEED AUTOMATIC GEARBOX

Automatic gearbox

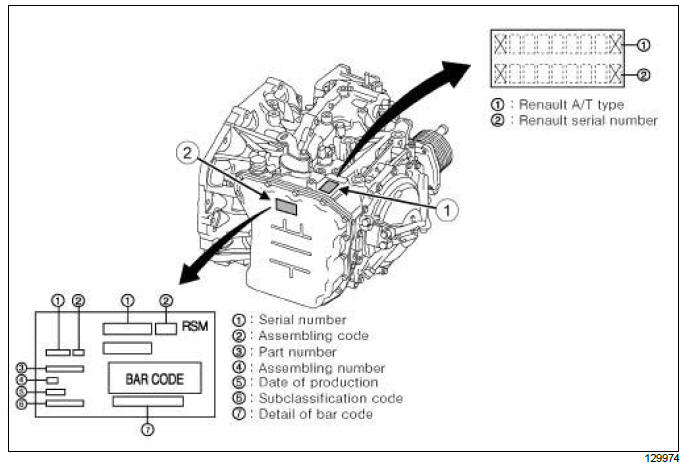

The gearbox is identified by an engraved marking (1) located on the top of the gearbox and by a self-adhesive label (2) on the hydraulic distributor housing.

FK0 or FK8

Automatic gearbox

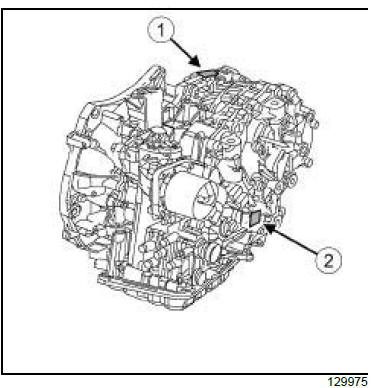

The gearbox is identified by an engraved marking (1) located on the top of the gearbox and by a self-adhesive label (2) affixed to the side of the gearbox.

Automatic gearbox

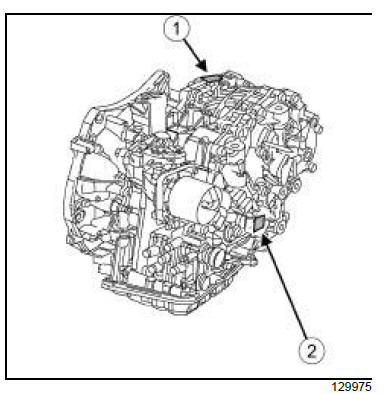

The gearbox is identified by an engraved marking (1) located on the top of the gearbox and by a self-adhesive label (2) affixed to the side of the gearbox.

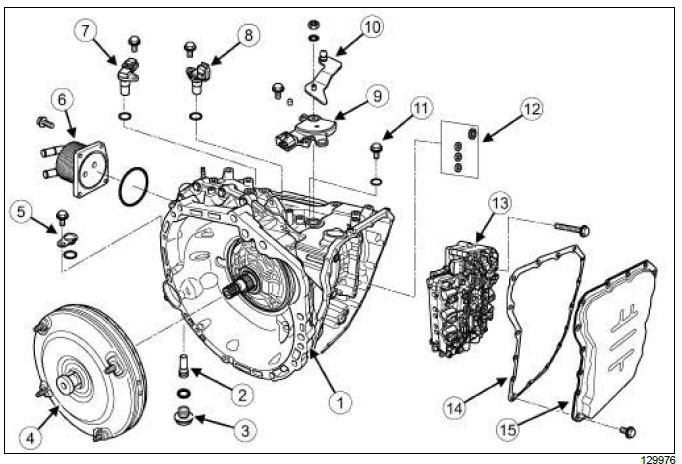

Automatic gearbox: List and location of components

6-SPEED AUTOMATIC GEARBOX

Automatic gearbox

  1. Automatic gearbox
  2. Oil overflow pipe (8 N.m)
  3. Level-setting plug (8 N.m)
  4. Converter
  5. Filler pipe closure panel (6 N.m)
  6. Oil cooler (4.5 N.m)
  7. Output speed sensor (6 N.m)
  8. Input speed sensor (6 N.m)
  9. Multifunction switch (6 N.m)
  10. Control lever (17 N.m)
  11. Hydraulic pressure measurement plug (8 N.m)
  12. Hydraulic distributor O-rings
  13. Hydraulic distributor (8 N.m)
  14. Hydraulic distributor casing seal
  15. Hydraulic distributor housing (8 N.m)

Automatic gearbox oil: Specifications

6-SPEED AUTOMATIC GEARBOX or VARIABLE GEARBOX

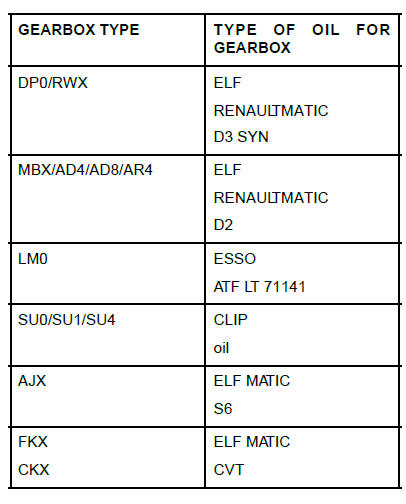

I - GEARBOX TYPE/OIL TYPE CORRELATIONS:

Automatic gearbox

Note: ELF RENAULTMATIC D3 SYN oil is not a substitute for ELF RENAULTMATIC D2.

II - STANDARDS AND PART NUMBERS OF THE VARIOUS RECOMMENDED OILS:

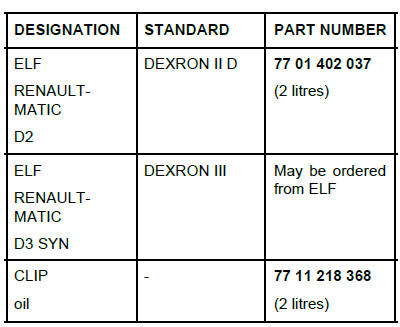

Automatic gearbox

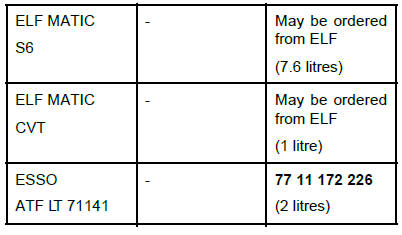

Automatic gearbox

    Automatic gearbox: Precautions for the repair

    Automatic gearbox oil: Draining - Filling
