6-SPEED MANUAL GEARBOX

Clutch

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

REFITTING

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
IMPORTANT To prevent the vehicle from falling, lash it to the vehicle lift using a strap.
  • Remove the gearbox.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Clutch

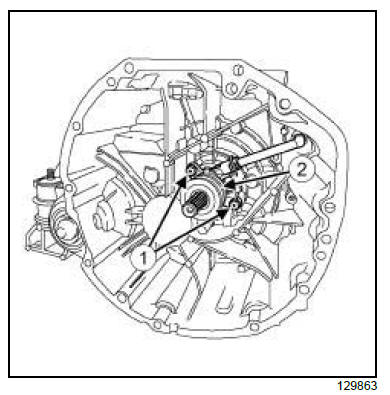

  • Remove:
    • the bolts (1) from the clutch thrust bearing,
    • the clutch thrust bearing (2) .

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always replace the clutch thrust bearing bolts.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the new clutch thrust bearing,
    • the new clutch thrust bearing bolts.

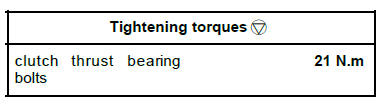

  • Torque tighten the clutch thrust bearing bolts (21 N.m).

III - FINAL OPERATION.

  • Refit the gearbox.
