Renault Koleos Service Repair Manual: Air flowmeter: Removal - Refitting

M9R

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

• Disconnect the connector from the air flowmeter.
• Remove:

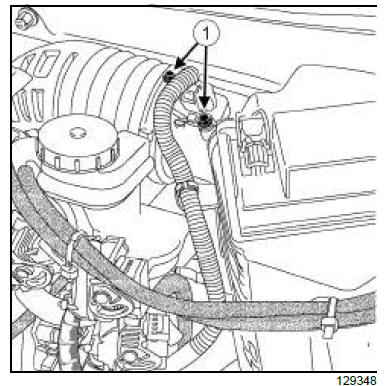

  • the air filter unit air flowmeter bolts (1) ,
  • the air flowmeter,
  • the air flowmeter seal.

REFITTING

I - REFITTING PREPARATION OPERATION

• Always replace the air flowmeter seal.

II - REFITTING OPERATION FOR PART CONCERNED

• Refit:
  • the air flowmeter seal,
  • the air flowmeter,
  • the air filter unit air flowmeter bolts (1) .

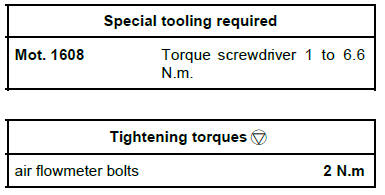

• Torque tighten the air flowmeter bolts (2 N.m) on the air filter unit using the tool (Mot. 1608).
• Connect the air flowmeter connector.

2TR

REMOVAL

I - REMOVAL PREPARATION OPERATION

• Position the vehicle on a two-post lift.
• Disconnect the battery.

II - OPERATION FOR REMOVAL OF PART CONCERNED

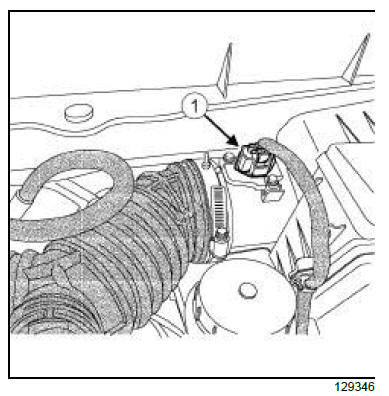

• Disconnect the air flowmeter connector (1) .
• Move aside the air flowmeter connector (1) .

• Remove:

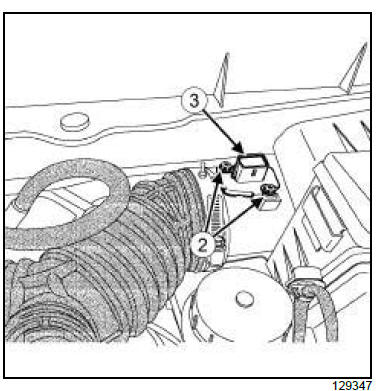

  • the bolts (2) from the air flowmeter,
  • the air flowmeter (3) .

REFITTING

REFITTING OPERATION FOR PART CONCERNED

• Refit:
  • the air flowmeter (3) ,
  • the air flowmeter bolts (2) .
• Torque tighten the air flowmeter bolts (2 N.m) (2) .
• Connect:
  • the air flow sensor connector (1) ,
  • the battery.
