Renault Koleos Service Repair Manual: Air inlet: Description

Renault Koleos Service Repair Manual / Engine and peripherals / Fuel mixture / Air inlet: Description

M9R

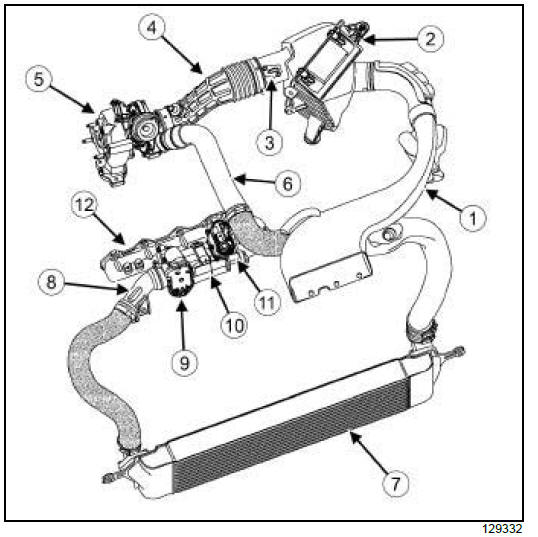

AIR INLET CIRCUIT DIAGRAM

Fuel mixture

  1. Air inlet sleeve
  2. Air filter unit
  3. Airflow meter
  4. Air filter unit air outlet pipe
  5. Turbocharger
  6. Intercooler air inlet pipe
  7. Exchanger
  8. Intercooler air outlet pipe
  9. Air inlet valve
  10. Turbocharger pressure sensor unit
  11. Exhaust gas recirculation solenoid valve
  12. Inlet manifold

2TR

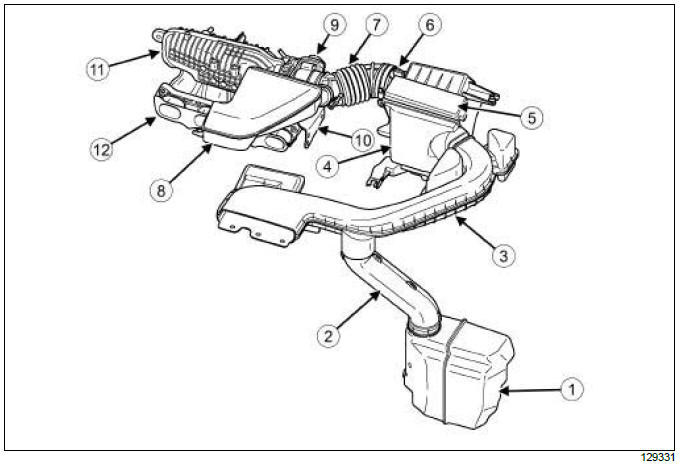

AIR INLET CIRCUIT DIAGRAM

Fuel mixture

  1. Air resonator on front end panel
  2. Air resonator sleeve
  3. Air inlet sleeve
  4. Air filter unit
  5. Air filter cover
  6. Air flowmeter
  7. Air inlet duct
  8. Air resonator on the rocker cover
  9. Motorised throttle valve
  10. Motorised throttle valve support
  11. Inlet manifold
  12. Inlet manifold adapter
