Renault Koleos Service Repair Manual: Paint

Anti-corrosion protection product: Description

POINTS LOCATED INSIDE THE VEHICLE

Anti-corrosion protection product: Descriptions

Note: Hollow body parts must be treated from inside the vehicle after painting and before retrimming.

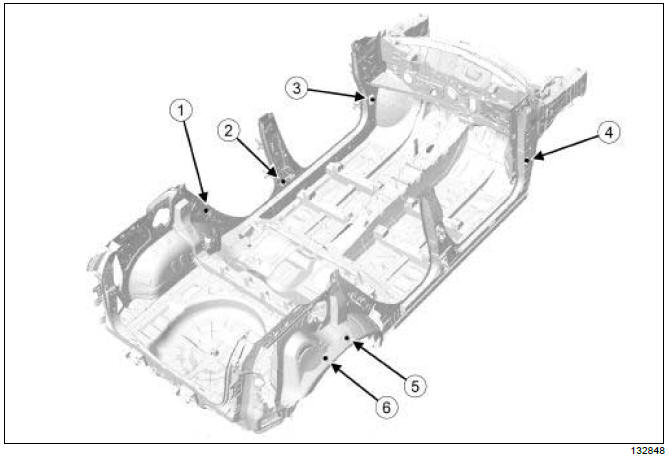

Side impact:

- replacing or repairing the sill panel:

  • Protection of the join between the inner sill panel and the sill panel reinforcement: injection of wax through point (2) .
  • Protection of the join between the inner sill panel and the inner sill panel: injection of wax through points (3) and (4) .

- replacing the quarter panel lining:

  • Injection of wax in points (5) , (6) and (1) .

- replacing the centre side member under the floor:

  • Injection of wax in points (15) , (16) , (17) and (18) .

Anti-corrosion protection product: Descriptions

Note: Hollow body parts must be treated from inside the vehicle after painting and before retrimming.

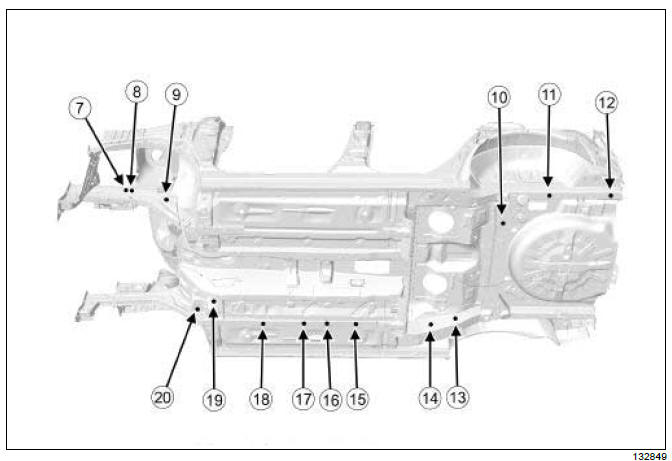

Frontal impact:

- replacing or repairing the front side member, the front side member closure panel and the front sub-frame mounting unit:

  • Injection of wax through points (7) , (8) and (9) .

- replacing the front side cross member:

  • Injection of wax in points (19) and (20) .

Rear impact:

- complete replacement of the rear side cross member:

  • Injection of wax through points (11) , (12) , (13) and (14) .

- replacing the rear floor centre cross member:

  • Injection of wax through point (10) .

1 - Equipment required

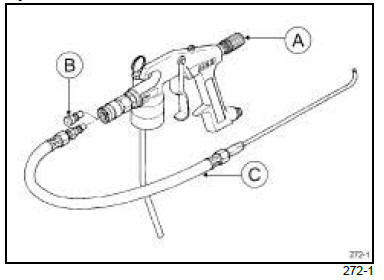

Injection nozzle

Anti-corrosion protection product: Descriptions

  1. Wax flow adjustment control
  2. Quick-release union end piece
  3. Interchangeable injection pipe
Note: Choose the pipe most suitable for the operation.

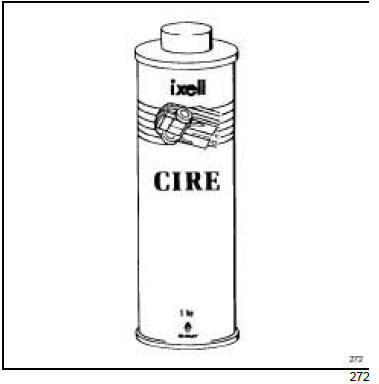

Can of wax

Anti-corrosion protection product: Descriptions

Apply the wax.

2 - Method of use

Anti-corrosion protection product: Descriptions

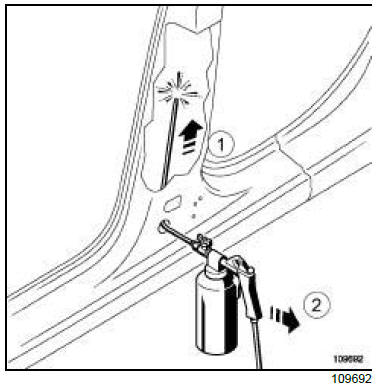

  1. Let the end piece of the nozzle penetrate to the bottom of the hollow section
  2. Inject the wax by retracting the end piece of the nozzle.
