I - CHECKING THE SUBFRAME

Collision

Chronological order of checks:

- Frontal impact:

  • (B) - (Ad) = (Bd) - (A)
  • (B) - (Gd) = (Bd) - (G)

- Rear impact:

  • (A) - (Bd) = (Ad) - (B)
  • (G) - (Bd) = (Gd) - (B)

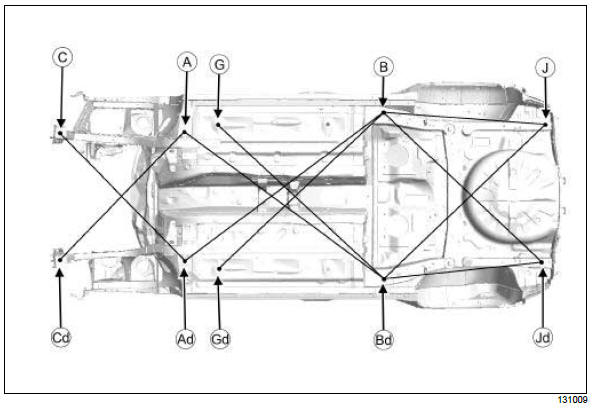

II - DETAILED VIEW OF INSPECTION POINTS

Points A, Ad: centre floor front side cross member leader pin

Collision

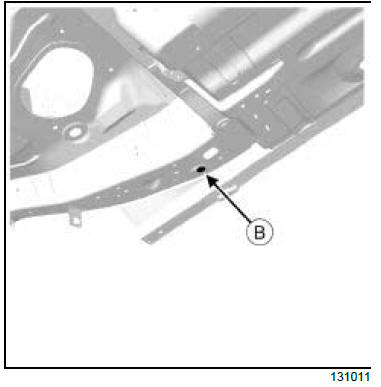

Points B, Bd: rear side member front mounting

Collision

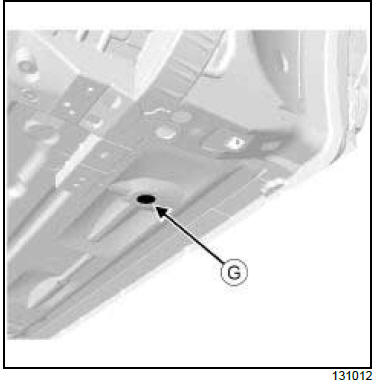

Points G, Gd: front floor front leader pin

Collision

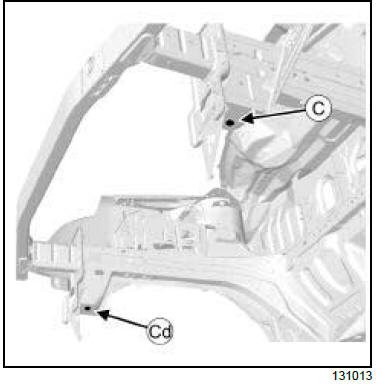

Points C, Cd: front side member front mounting

Collision

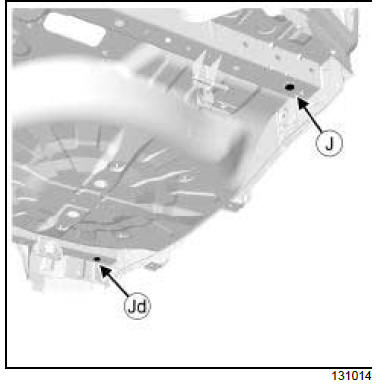

Points J, Jd: rear side member rear leader pin

Collision

    Collision

    Vehicle involved in a frontal impact: Description
