Opening the doors from the outside With the doors unlocked, pull handle 1. Special feature on vehicles equipped with a RENAULT card With the doors locked, press button 2 on handle 1 of one of the two front doors and pull towards you.

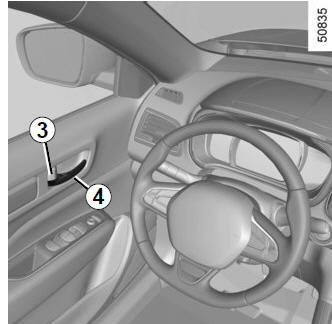

Opening from the inside If the vehicle is equipped with the knob 3, pull the handle 4 with the door unlocked. If the vehicle is not equipped with the knob 3, pull the handle 4. Lights-on reminder buzzer If you have switched off the ignition and left the lights switched on, a reminder buzzer will sound when a door is opened and if the light stalk is not in position AUTO.
Door/tailgate open buzzer At a standstill, the warning light 5 lights
up on the instrument panel alongside
the warning light 6 Once the vehicle reaches a speed of approximately 12 mph (20 km/h), a warning light indicates the opening elemet(s) (door, boot) open of improperly closed, alongside the message "Boot open" or "Door open" and a beep will sound for around 40 seconds or until the opening element is closed.

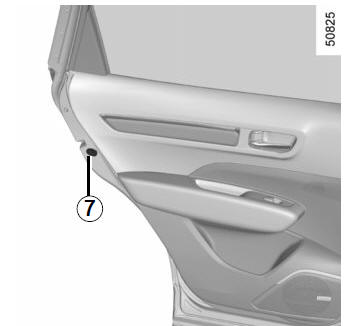

Vehicle with manual door locking To make it impossible for the rear doors to be opened from the inside, move lever 7 on each door and check from the inside that the doors are securely locked.
|
