Renault Koleos Service Repair Manual: Door mirror: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

Exterior equipment

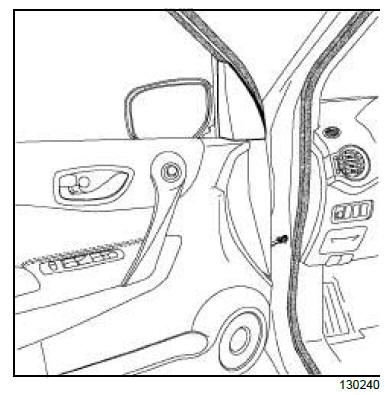

  • Remove:
    • the cover from the corner of the door mirror,
    • the front side door trim (see Front side door trim: Removal - Refitting) (72A, Side opening element trim).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Exterior equipment

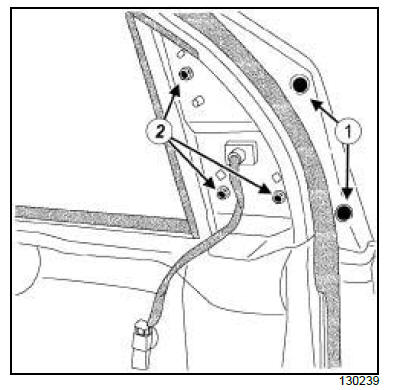

  • Remove:
    • the clips (1) ,
    • the bolts (2) .
  • Disconnect the supply connectors (depending on equipment level).
  • Remove the door mirror.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the door mirror,
    • the bolts,
    • the clips.
  • Connect the supply connector (depending on equipment level).

II - FINAL OPERATION.

  • Check that it is working correctly.
  • Refit:
    • the front side door trim (see Front side door trim: Removal - Refitting) (72A, Side opening element trim),
    • the cover on the corner of the door mirror.
    Scoop under the scuttle panel grille: Removal - Refitting

    Door mirror casing: Removal - Refitting

    See More:

    Renault Koleos Service Repair Manual > Side opening element mechanisms: Rear side door lock barrel: Removal - Refitting
    REMOVAL I - REMOVAL PREPARATION OPERATION Remove the door lock blanking cover. II - OPERATION FOR REMOVAL OF PART CONCERNED Undo the bolt (1) without removing it. Remove the door lock barrel (2) . REFITTING I - REFITTING OPERATION FOR PART CONCERNED Refit the door lock barrel (2) . Refit the bolt (1 ...
