To slide the curtain 1 With the ignition on:

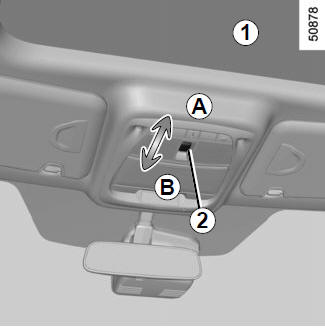

It doesn't need to be held. The curtain will automatically open or close all the way. To tilt the sunroof When the sunroof is closed, press switch 2 to tilt up the sunroof. It doesn't need to be held. When the sunroof is tilt, press switch 2 to close the sunroof. It doesn't need to be held. Special features If the window detects resistance when closing or tilting down (e.g.: arms, branch of a tree, etc.) it moves to the front or tilts up. If this function malfunctions and repeats opening or tilting up the sunroof, keep pushing the tilt down switch within 5 seconds after it happens; the sunroof will fully close gradually. Make sure nothing is caught in the sunroof.
To slide the sunroof With the ignition on:
It doesn't need to be held. The sunroof will automatically open or close all the way. To stop the window, push the switch once more while it is opening or closing. Note: If you wish to open the sunroof while driving, comfort opening is recommended to prohibit wind buffeting. Precautions during use
Operating fault If the sunroof does not close, please consult an authorised dealer.
|
