Renault Koleos Service Repair Manual: Door mirror casing: Removal - Refitting

Renault Koleos Service Repair Manual / Mechanisms and accessories / Exterior equipment / Door mirror casing: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the door mirror glass (see 56A, Exterior equipment, Door mirror glass: Removal - Refitting, page 56A-4) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Exterior equipment

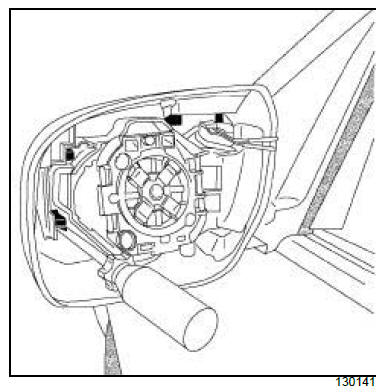

  • Unclip the retaining clips using a flat-blade screwdriver.
  • Fold in the door mirror.

Exterior equipment

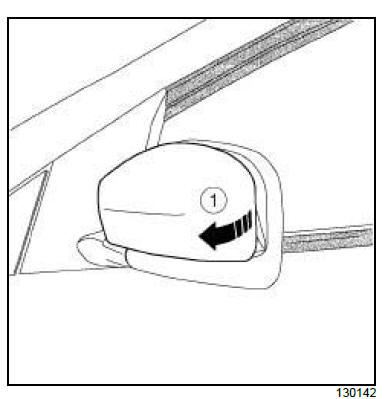

  • Remove the door mirror cover (1) .
  • Check the condition of the clips and replace the door mirror cover, if necessary.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Fit the door mirror cover.

II - FINAL OPERATION

  • Refit the door mirror glass (see 56A, Exterior equipment, Door mirror glass: Removal - Refitting, page 56A-4) .
    Door mirror: Removal - Refitting

    Door mirror glass: Removal - Refitting
