Renault Koleos Service Repair Manual: Scoop under the scuttle panel grille: Removal - Refitting

Renault Koleos Service Repair Manual / Mechanisms and accessories / Exterior equipment / Scoop under the scuttle panel grille: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the windscreen wiper arms (see Windscreen wiper arm: Removal - Refitting) (85A, Wiping - Washing),
    • the scuttle half-grille (see 56A, Exterior equipment, Scuttle panel half-grille: Removal - Refitting, page 56A-5) ,
    • the windscreen wiper mechanism (see Windscreen wiper mechanism: Removal - Refitting) (85A, Wiping - Washing).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Exterior equipment

  • Remove:

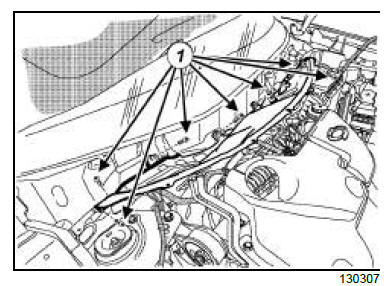

    • the bolts (1) ,
    • the windscreen wiper motor wiring,
    • the scoop under the scuttle panel grille.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the scoop under the scuttle panel grille.
    • the windscreen wiper motor wiring,
    • the bolts.

II - FINAL OPERATION.

  • Refit:
    • the windscreen wiper mechanism (see Windscreen wiper mechanism: Removal - Refitting) (85A, Wiping - Washing),
    • the scuttle half-grille (see 56A, Exterior equipment, Scuttle panel half-grille: Removal - Refitting, page 56A-5) ,
    • the windscreen wiper arms (see Windscreen wiper arm: Removal - Refitting) (85A, Wiping - Washing).
