REMOVAL

REMOVAL PREPARATION OPERATION

Heating

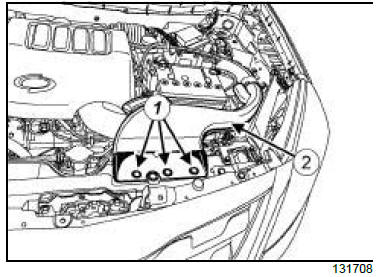

  • Remove clips (1) .
  • Remove the air inlet sleeve (2) .

Heating

  • Remove:

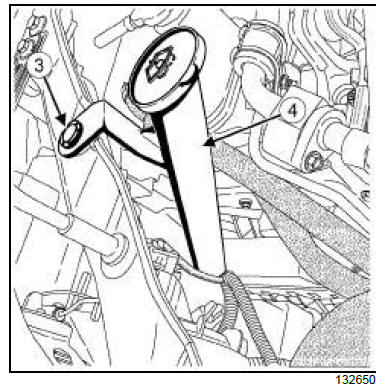

    • the clip (3) ,
    • the screen washer bottle filler neck (4) .

Heating

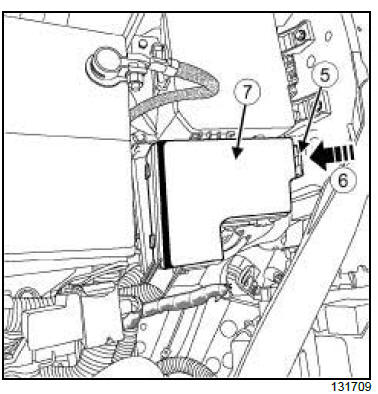

  • Unclip the relay unit cover at (5) in the direction of the arrow (6) .
  • Remove the relay unit cover (7) .

Heating

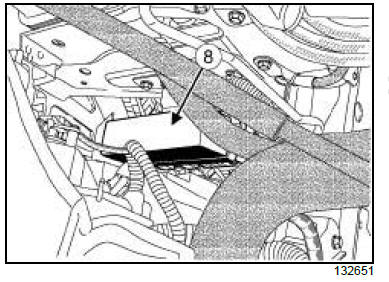

  • Remove the relay unit cover (8) .

Heating

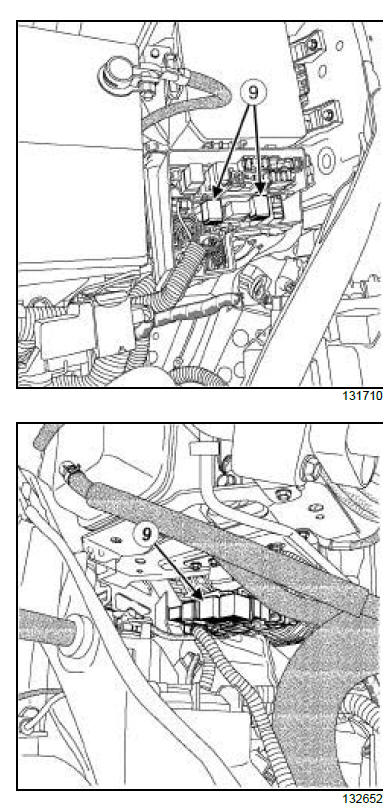

  • Remove the heating resistor relays (9) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the heater resistor relays,
    • the relay unit covers.
  • Clip the relay unit cover on at (5) .

II - FINAL OPERATION.

  • Refit:
    • the screen washer bottle filler neck,
    • the clip (3) ,
    • the air inlet sleeve.
  • Refit the air inlet sleeve clips.
