REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Disconnect the battery (see Battery : Removal - Refitting) (80A, Battery).
  • Remove:
    • the cab floor panel trim (see Cab floor lining: Removal - Refitting) (71A, Bodywork interior trim),
    • the front door sill lining (see Front door sill lining: Removal - Refitting) (71A, Body internal trim),
    • the rear inner sill trim (see Rear door sill lining: Removal - Refitting) (71A, Body internal trim),
    • the B-pillar trim (see B-pillar trim: Removal - Refitting) (71A, Body internal trim),
    • the front seat (see Complete front seat: Removal - Refitting) (75A, Front seat frames and runners),
    • the central console (see Centre console: Removal - Refitting) (57A, Interior equipment),
    • the rear seat (see Complete rear seat: Removal - Refitting) (76A, Rear seat frames and seat runners),
    • the floor carpet (see Floor carpet: Removal - Refitting) (71A, Body internal trim).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Heating

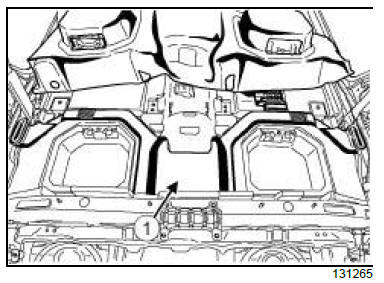

  • Remove the rear air distribution duct (1) .

Heating

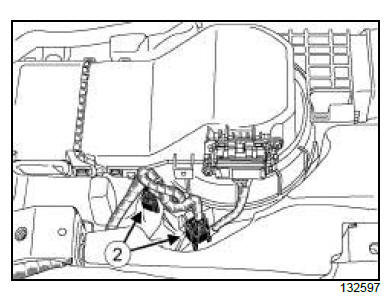

  • Disconnect the connectors (2) .

Heating

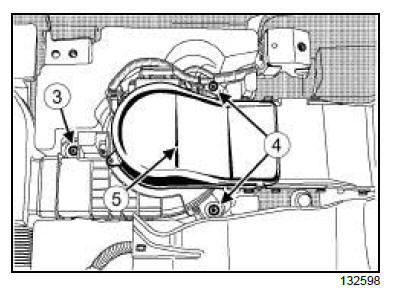

  • Remove:
    • the bolt (3) ,
    • the nuts (4) ,
    • the rear fan assembly (5) .

Heating

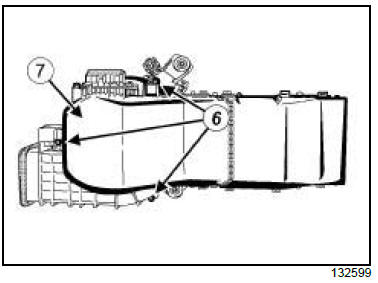

  • Remove:
    • the bolts (6) ,
    • the rear fan assembly rear air distribution duct (7) .

Heating

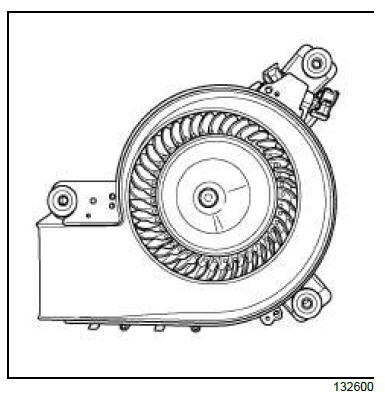

  • Remove the rear fan assembly.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the rear air distribution duct to the rear fan assembly,
    • the rear air distribution duct bolts,
    • the rear fan assembly,
    • the rear fan assembly nuts,
    • the rear fan assembly bolts.
  • Connect the rear fan assembly connectors.
  • Refit the rear air distribution duct.

II - FINAL OPERATION.

  • Refit:
    • the floor carpet (see Floor carpet: Removal - Refitting) (71A, Body internal trim),
    • the rear seat (see Complete rear seat: Removal - Refitting) (76A, Rear seat frames and seat runners),
    • the central console (see Centre console: Removal - Refitting) (57A, Interior equipment),
    • the front seat (see Complete front seat: Removal - Refitting) (75A, Front seat frames and runners),
    • the B-pillar trim (see B-pillar trim: Removal - Refitting) (71A, Body internal trim),
    • the rear inner sill trim (see Rear door sill lining: Removal - Refitting) (71A, Body internal trim),
    • the front door sill lining (see Front door sill lining: Removal - Refitting) (71A, Body internal trim),
    • the cab floor panel trim (see Cab floor lining: Removal - Refitting) (71A, Bodywork interior trim).
  • Connect the battery (see Battery : Removal - Refitting) (80A, Battery).
