Renault Koleos Service Repair Manual: Heating resistor unit: Removal - Refitting

Renault Koleos Service Repair Manual / Air conditioning / Heating / Heating resistor unit: Removal - Refitting

LEFT-HAND DRIVE

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the lower left-hand cover on the centre panel (see Dashboard: Removal - Refitting) (57A, Interior equipment).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Heating

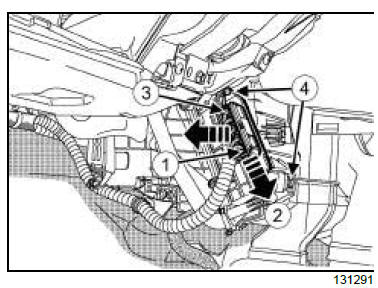

  • Unclip the heater resistor connector clip (1) in the direction of the arrow (2) .
  • Disconnect the connector (3) .
  • Remove:
    • the bolts (4) ,
    • the heating resistor.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the heating resistor,
    • the heating resistor bolts.
  • Connect the heating resistor connector.
  • Clip on the heater resistor connector clip.

II - FINAL OPERATION.

  • Remove the lower left-hand cover on the centre panel (see Dashboard: Removal - Refitting) (57A, Interior equipment).

RIGHT-HAND DRIVE

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the glovebox (see Glovebox: Removal - Refitting) ( 57A, Interior equipment),
    • the lower cover on the right-hand side of the centre panel (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the driver's side A pillar air distribution duct (see Front air distribution duct: Removal - Refitting)

II - OPERATION FOR REMOVAL OF PART CONCERNED

Heating

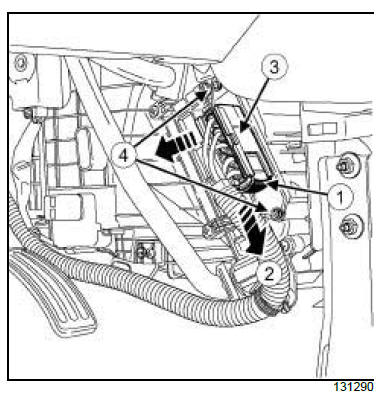

  • Unclip the heater resistor connector clip (1) in the direction of the arrow (2) .
  • Disconnect the connector (3) .
  • Remove:
    • the bolts (4) ,
    • the heating resistor.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the heating resistor,
    • the heating resistor bolts.
  • Connect the heating resistor connector.
  • Clip on the heater resistor connector clip.

II - FINAL OPERATION

  • Refit:
    • the driver's side A pillar air distribution duct (see Front air distribution duct: Removal - Refitting) ,
    • the lower cover on the right-hand side of the centre panel (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the glovebox (see Glovebox: Removal - Refitting) (57A, Interior equipment).
