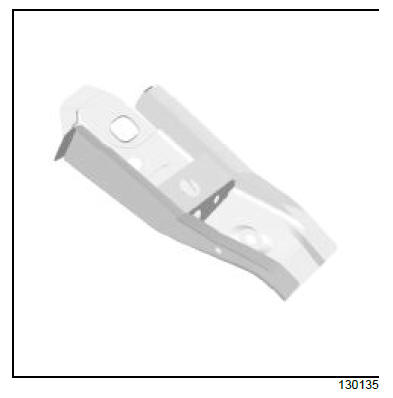

Centre lower structure

There is only one way of replacing this part:

  • complete replacement.
IMPORTANT Use a repair bench to ensure the positioning of the points and the geometry of the axle assemblies.

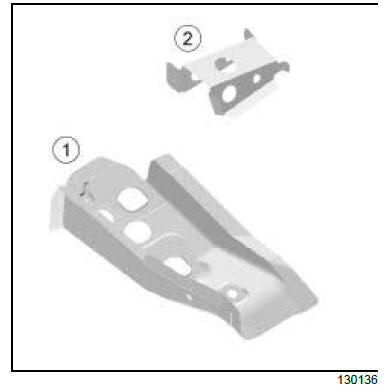

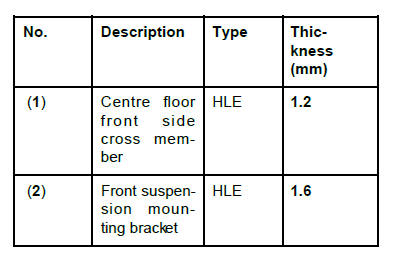

I - COMPOSITION OF THE SPARE PART

Centre lower structure

Centre lower structure

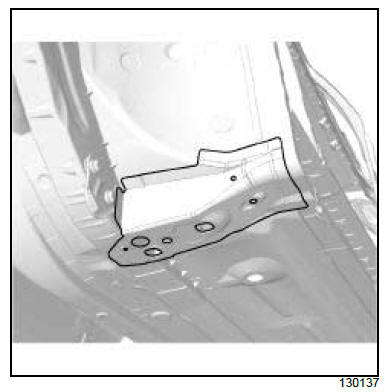

II - PART FITTED

Centre lower structure

WARNING If the mating faces of the parts to be welded are not accessible, make EGW plug welds to replace the original resistance welds (see MR 400).

Front cross member under front seat: General description

Note: The information contained in the following describes the general repair procedure for all vehicles having the same design for this part.

Before reading this general information, check that there are no special notes associated with this vehicle.

These special notes will be specified if applicable in other parts of this subsection dealing with the part.



Note: For a detailed description of a particular connection, see MR 400.

DESIGN OF THE STRUCTURAL COMPONENT

This is a basic part; its function is to secure the front section of the front seat and to stiffen the bodywork in the event of a side impact.

Front cross member under front seat: Description

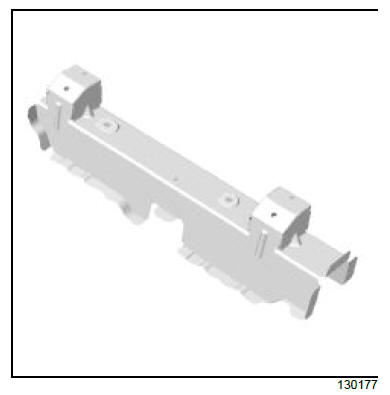

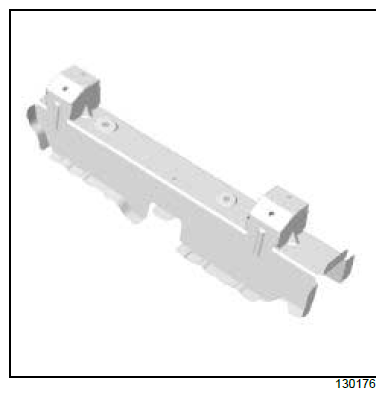

Centre lower structure

There is only one way of replacing this part:

  • complete replacement.

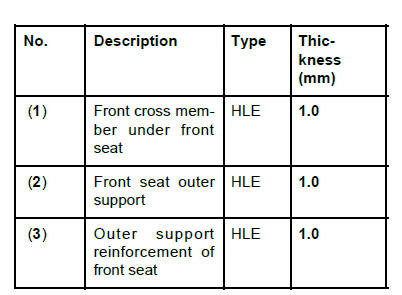

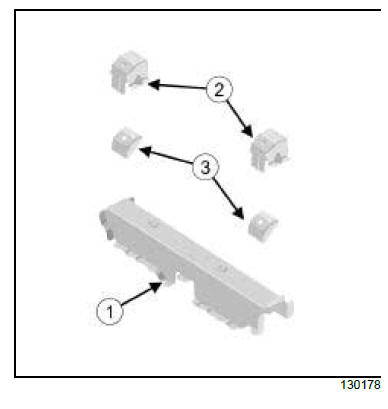

I - COMPOSITION OF THE SPARE PART

Centre lower structure

Centre lower structure

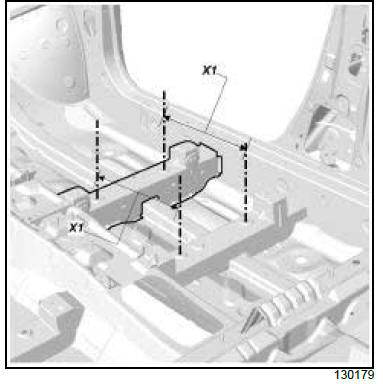

II - PART FITTED

Complete replacement

Centre lower structure

(X1) = 342 mm

WARNING If the mating faces of the parts to be welded are not accessible, make EGW plug welds to replace the original resistance welds (see MR 400).
