Renault Koleos Service Repair Manual: Rear cross member under front seat: General description

Renault Koleos Service Repair Manual / Panelwork / Centre lower structure / Rear cross member under front seat: General description

Note: The information contained in the following describes the general repair procedure for all vehicles having the same design for this part.

Before reading this general information, check that there are no special notes associated with this vehicle.

These special notes will be specified if applicable in other parts of this subsection dealing with the part.



Note: For a detailed description of a particular connection, see MR 400.

DESIGN OF THE STRUCTURAL COMPONENT

Centre lower structure

This is a basic part. It serves as a mounting for the rear part of the front seat and to rigidify the body in the event of a side impact.

Rear cross member under front seat: Description

Centre lower structure

There is only one way of replacing this part:

  • complete replacement.

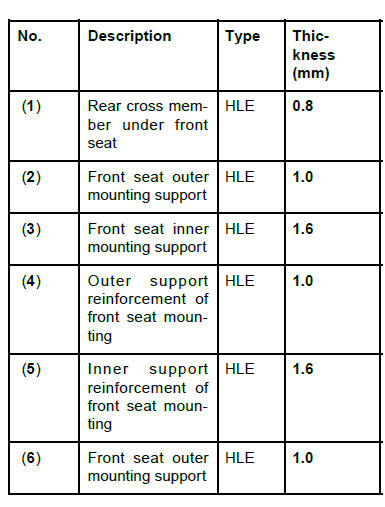

I - COMPOSITION OF THE SPARE PART

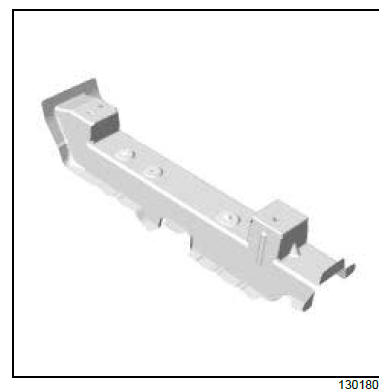

Centre lower structure

Centre lower structure

II - PART FITTED

Complete replacement

Centre lower structure

(X1) = 342 mm

WARNING If the mating faces of the parts to be welded are not accessible, make EGW plug welds to replace the original resistance welds (see MR 400).
    Centre floor front lateral cross member: Description

    Side lower structure
