Centre lower structure

The options for replacing this part are as follows:

  • partial replacement of the front side section,
  • partial replacement of rear side section,
  • partial replacement of the side section.

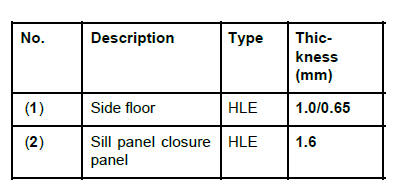

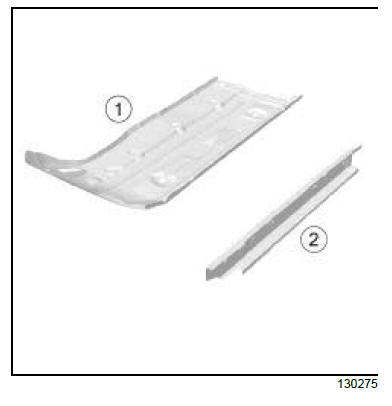

I - COMPOSITION OF THE SPARE PART

Centre lower structure

Centre lower structure

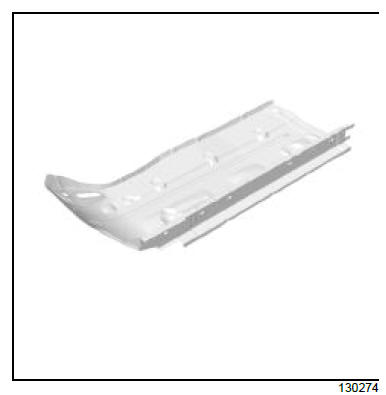

II - PART FITTED

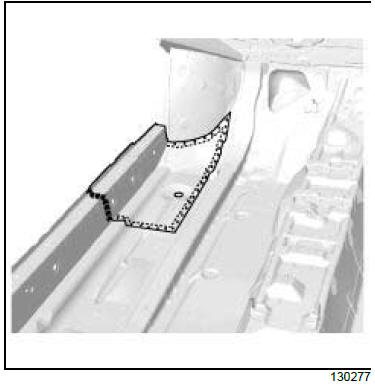

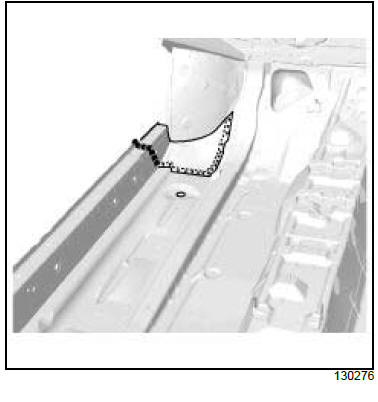

Partial replacement of the front end side section

Centre lower structure

Partial replacement of the front side section

Centre lower structure

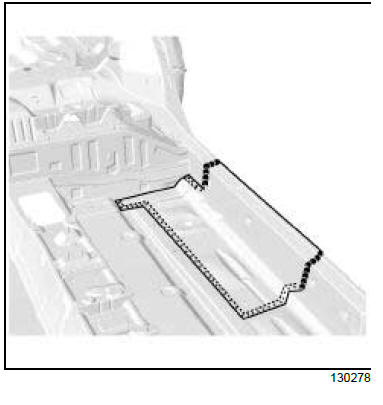

Partial replacement of the rear side section

Centre lower structure

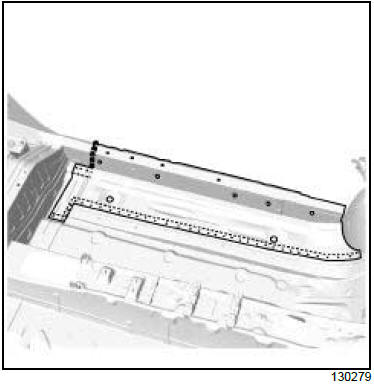

partial replacement of the side section

Centre lower structure

WARNING If the mating faces of the parts to be welded are not accessible, make EGW plug welds to replace the original resistance welds (see MR 400).

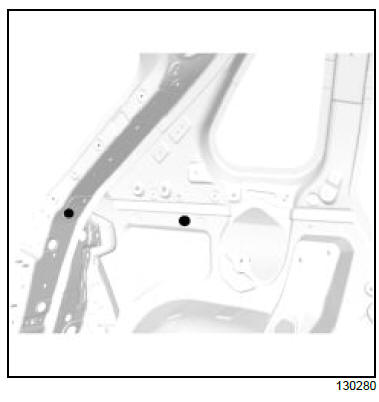

III - POSITIONING OF LOCAL ELECTRICAL EARTHS

Centre lower structure

WARNING To avoid damaging the vehicle's electrical and electronic components, disconnect the earths of any wiring near the weld area.

Position the welding machine earth as close as possible to the weld zone (see MR 400).

Tunnel: Description

Centre lower structure

There is only one way of replacing this part:

  • complete replacement.

This operation complements the complete replacement of the centre floor side section for a side impact.

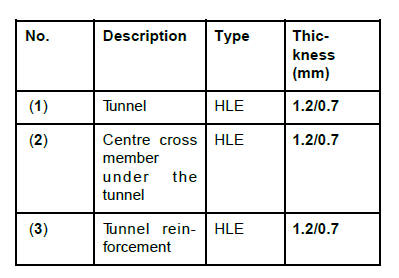

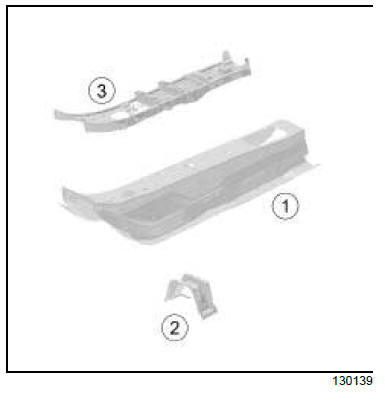

I - COMPOSITION OF THE SPARE PART

Centre lower structure

Centre lower structure

II - PART FITTED

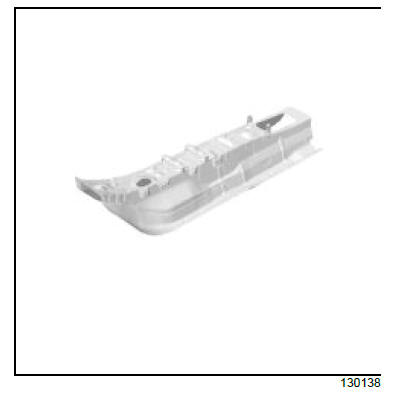

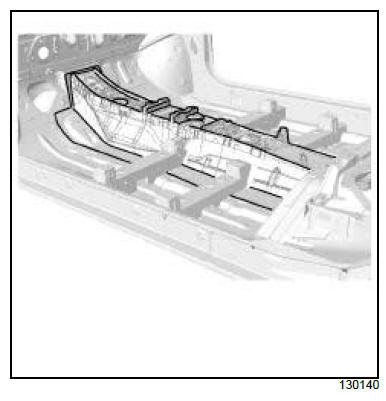

Complete replacement

Centre lower structure

WARNING If the mating faces of the parts to be welded are not accessible, make EGW plug welds to replace the original resistance welds (see MR 400).
