WARNING The information contained in the following describes the general repair procedure for all vehicles having the same design for this part.

Before reading this general information, check that there are no special notes associated with this vehicle.

These special notes will be specified if applicable in other parts of this subsection dealing with the part.



Note: For a detailed description of a particular connection, (see MR 400).

I - DESIGN OF THE STRUCTURAL COMPONENT

Centre lower structure

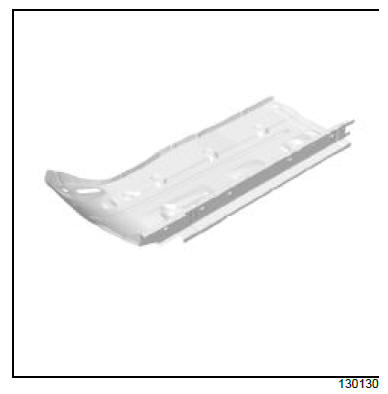

The component is made of two different kinds of panel of different thickness assembled by laser butt welding.

II - AREA TO BE CUT FOR PARTIAL REPLACEMENT

Centre lower structure

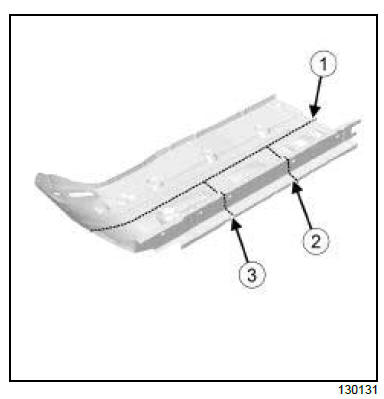

These cutting lines show the area in which it is possible to carry out a partial replacement of the centre floor side section.

Cut 1, 2 and 3:

  • cut (1) affects the partial replacement of the centre floor side section,
  • cuts (1) and (2) affect the partial replacement of the rear section of the centre floor side section
  • cuts (1) and (3) affect the partial replacement of the front section of the centre floor side section.

III - ASSEMBLY METHOD FOR A PARTIAL REPLACEMENT

Only the connections which are specific to the partial replacement by cutting are indicated.

WARNING If the spot welds cannot be made as they were originally using an electrical spot welding machine, they should be replaced with plug welds after holes have been drilled in the first panel.

If there are other issues regarding access to mating faces, the various replacement options are described in the basic instructions for structural bodywork repair (see MR 400, 40A, General Information).

Centre lower structure

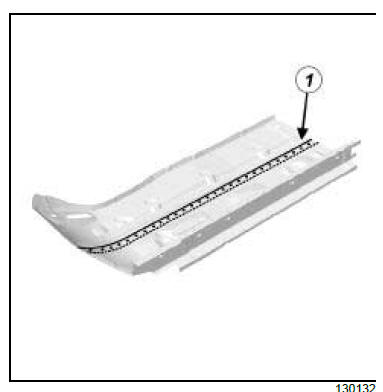

Line (1) on the diagram shows partial replacement and a weld by joggling with plug welds at regular intervals.

Centre lower structure

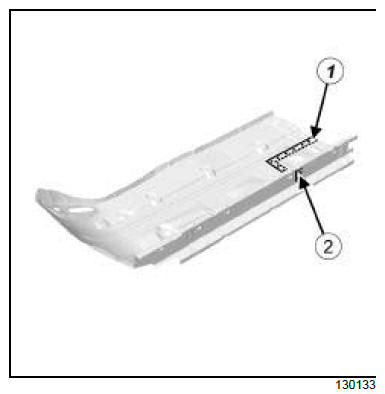

Lines (1) and (2) on the diagram show the partial rear replacement and a weld by joggling with plug welds at regular intervals.

Centre lower structure

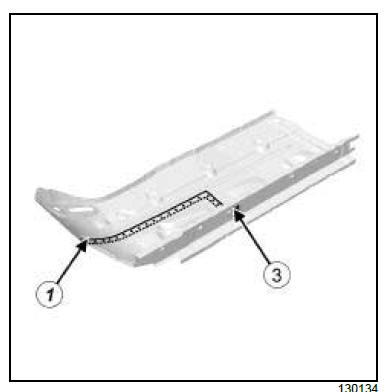

Lines (1) and (3) on the diagram show the partial front replacement and a weld by joggling with plug welds at regular intervals.

    Centre lower structure

    Central floor, side section: Description
