Renault Koleos Service Repair Manual: Windscreen wiper blade: Removal - Refitting

Renault Koleos Service Repair Manual / Electrical equipment / Wiping - washing / Windscreen wiper blade: Removal - Refitting

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

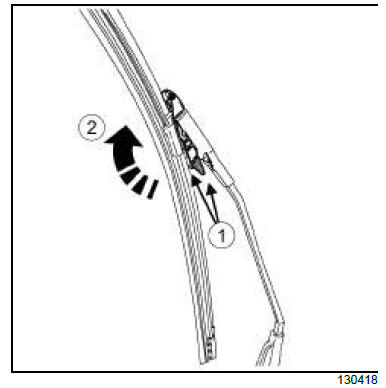

  • Press the clips (1) on both sides while turning the windscreen wiper blade in the direction of the arrow (2) .
  • Remove the windscreen wiper blade.

REFITTING

REFITTING OPERATION FOR PART CONCERNED

Electrical equipment

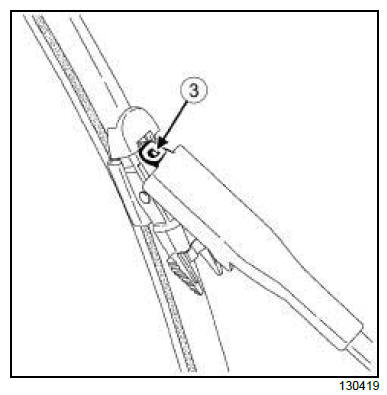

  • Refit the windscreen wiper blade on the end (3) of the wiper arm.
  • Clip the windscreen wiper blade onto the windscreen wiper arm.

Windscreen wiper arm: Removal - Refitting

Electrical equipment

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Switch on the ignition.
WARNING To ensure that the wiper arms can travel smoothly, the wiper motor must be initialised.
  • Turn the wiper switch stalk from (0) to (1), and then from (1) to (0).
  • Switch off the ignition.
  • Mark the position of the wiper arms for the refitting operation.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

  • Remove:
    • the covers from the screen wiper arm nuts,

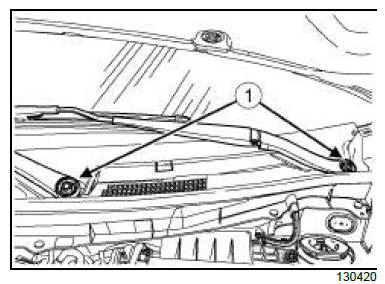

    • the nuts (1) from the screen wiper arm.

Electrical equipment

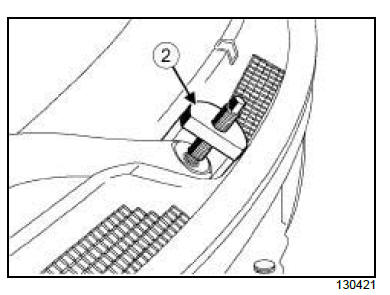

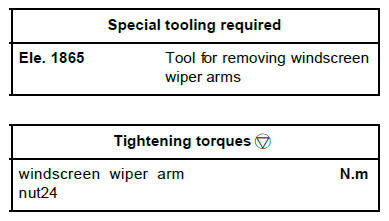

  • Remove the wiper arm using the (Ele. 1865) (2) .

REFITTING

I - REFITTING PREPARATION OPERATION

Electrical equipment

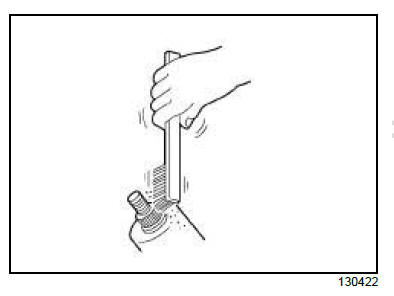

  • Clean the screen wiper arm mounting to prevent the nut from coming loose.

II - REFITTING OPERATION FOR PART CONCERNED

  • Switch on the ignition.
WARNING To ensure that the wiper arms can travel smoothly, the wiper motor must be initialised.
  • Turn the wiper switch stalk from (0) to (1), and then from (1) to (0).
  • Switch off the ignition.
  • Refit:
    • the wiper arm in the position marked before removal,
    • the wiper arm nut.
  • Torque tighten the windscreen wiper arm nut24 (N.m).
  • Refit the wiper arm nut cover.
    Wiping and washing: List and location of components

    Windscreen wiper mechanism: Removal - Refitting
