I - LIST OF COMPONENTS

  1. Wiper stalk
  2. UCH
  3. Passenger compartment fuse and relay box
  4. Windscreen wiper blade
  5. Windscreen wiper blade arm
  6. Windscreen wiper mechanism
  7. Windscreen wiper motor
  8. Windscreen wiper jet
  9. Rear screen wiper blade
  10. Rear screen wiper blade arm
  11. Rear screen wiper motor
  12. Rear screen wiper jet
  13. Windscreen washer bottle
  14. Windscreen washer pump
  15. Windscreen washer neck
  16. Rain and light sensor

II - LOCATION OF COMPONENTS

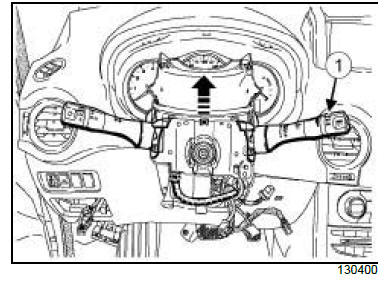

1 - Wiper stalk

Electrical equipment

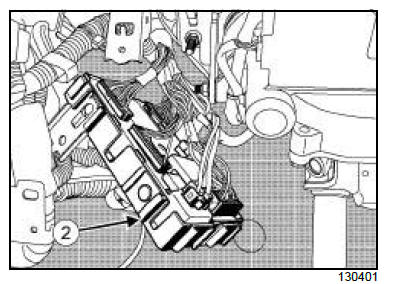

2 - UCH

Electrical equipment

The UCH is located in the dashboard, behind the passenger compartment fuse and relay box. To remove it (see 87B, Passenger compartment connection unit, UCH: Removal - Refitting, page 87B-1) .

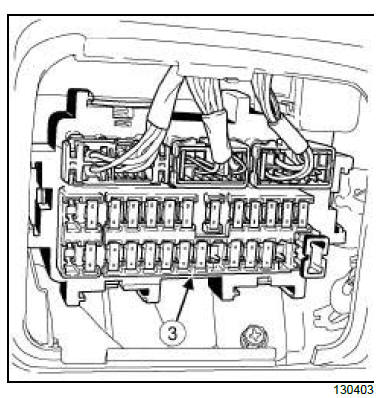

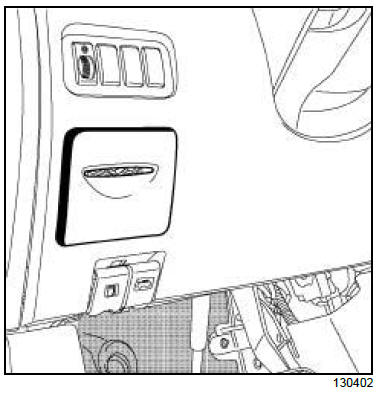

3 - Passenger compartment fuse and relay box

Electrical equipment

Electrical equipment

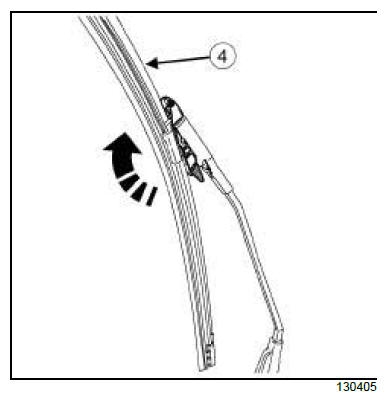

4 - Windscreen wiper blade

Electrical equipment

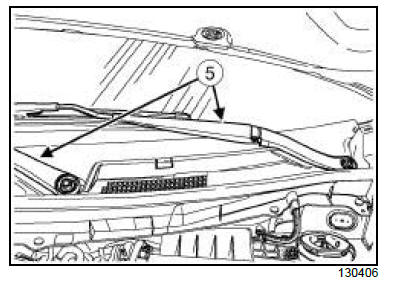

5 - Windscreen wiper blade arm

Electrical equipment

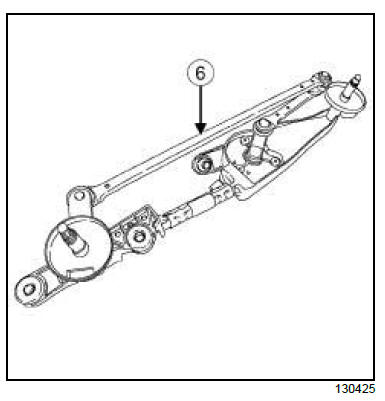

6 - Windscreen wiper mechanis

Electrical equipment

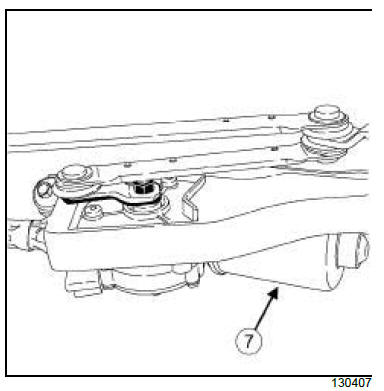

7 - Windscreen wiper motor

Electrical equipment

The windscreen wiper motor is incorporated into the windscreen wiper mechanism (see 85A, Wiping - Washing, Windscreen wiper mechanism: Removal - Refitting, page 85A-9) .

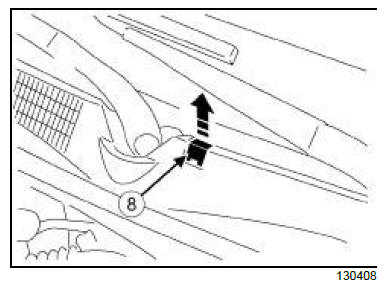

8 - Windscreen wiper jet

Electrical equipment

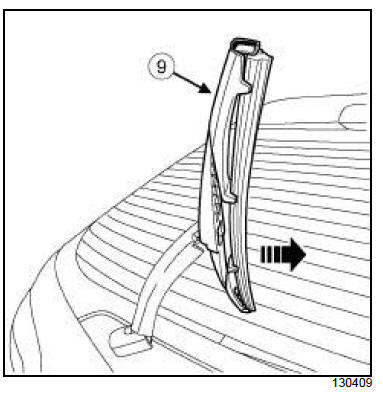

9 - Rear screen wiper blade

Electrical equipment

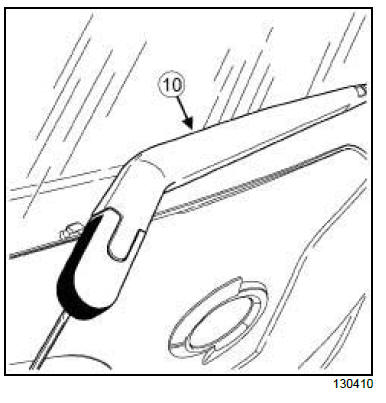

10 - Rear screen wiper blade arm

Electrical equipment

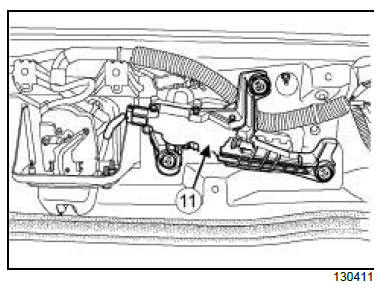

11 - Rear screen wiper motor

Electrical equipment

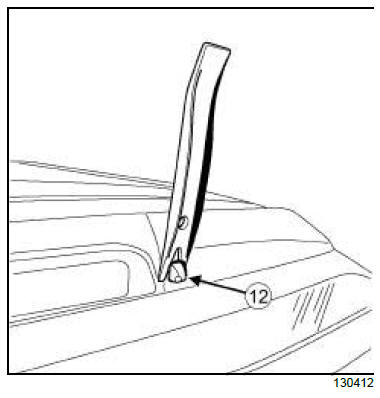

12 - Rear screen wiper jet

Electrical equipment

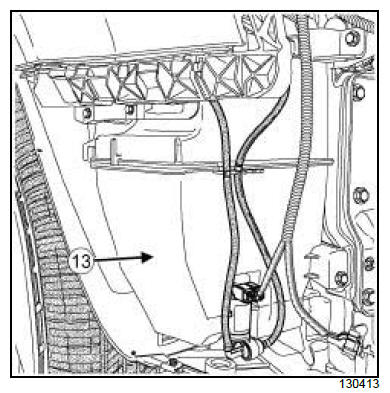

13 - Windscreen washer bottle

Electrical equipment

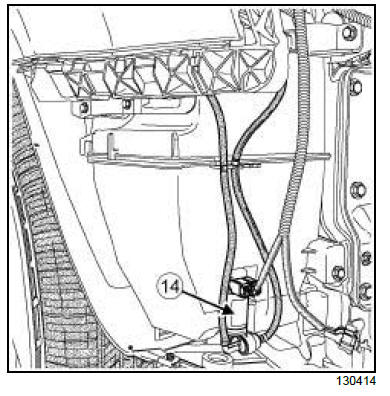

14 - Windscreen washer pump

Electrical equipment

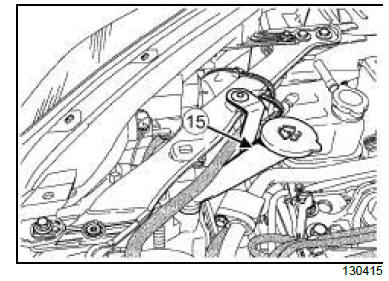

15 - Windscreen washer neck

Electrical equipment

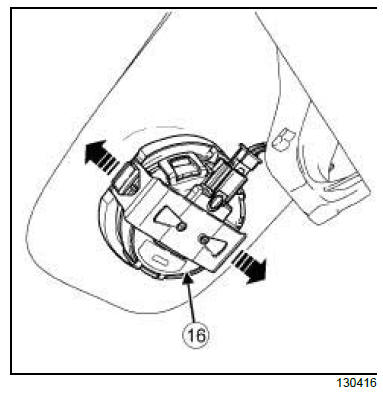

16 - Rain and light sensor

Electrical equipment

The rain and light sensor is located underneath the interior rear-view mirror covers.
