Renault Koleos Owners Manual: Luggage net

Luggage net

Depending on the vehicle, this may be used when transporting animals or luggage to isolate them from the passenger section.

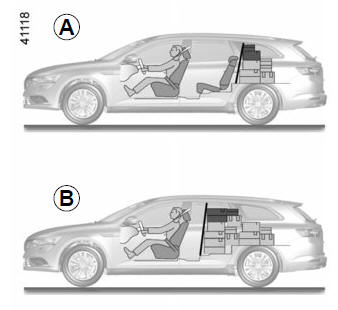

It can be positioned:

  • A: behind the rear seats;
  • B: behind the front seats.
The luggage net is designed to retain a maximum weight of 10 kg.

Risk of injury.

Luggage net

Fitting the luggage net behind the front seats

Inside the vehicle on each side:

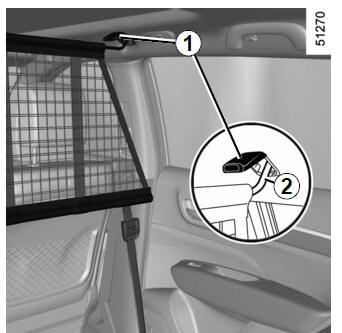

  • lift the cover 1 to access the anchoring point;
  • latch the hook 2 of luggage net to the anchoring point;

Luggage net

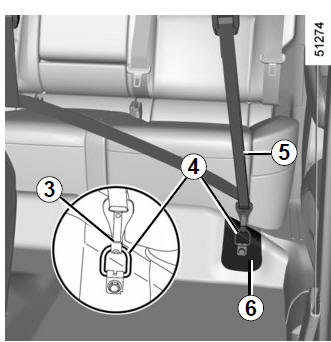

  • open the U-shaped area 6 to access the anchoring point 4;
  • rotate the anchoring point 4 up to 90 degrees using the tool;
  • latch the hook 3 to the anchoring point 4;
  • adjust the net strap 5 so that it is taut;
  • fit the luggage net in the same way for the other side.
Do not install the luggage net in this position when a passenger is occupying a rear seat.

Luggage net

Fitting the luggage net behind the rear seats

Inside the vehicle on each side:

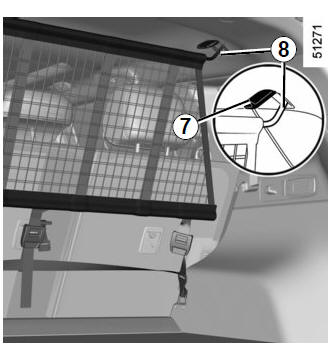

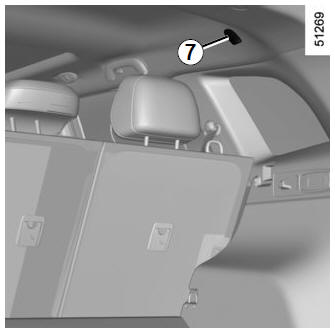

  • lift the cover 7 to access the anchoring point;
  • latch the hook 8 of luggage net to the anchoring point;

Luggage net

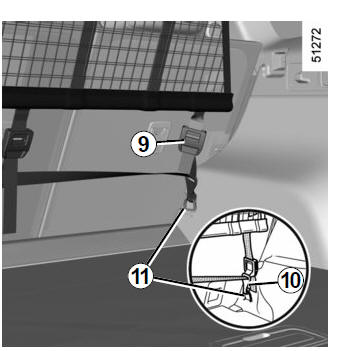

  • latch the hook 10 to the anchoring point 11;
  • adjust the net strap 9 so that it is taut.

    The seatbacks must not touch the luggage net;

  • fit the luggage net in the same way for the other side.

Luggage net

    Luggage compartment cover

    Boot fittings
