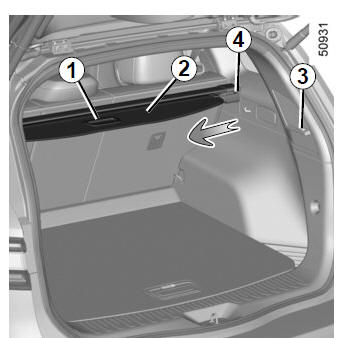

To unfold the luggage compartment cover 2 Pull handle 1 located under the cover and place each end of the cover in the notch 3.
To remove the flexible section of the luggage compartment cover 2 Pull handle 1 gently then lift it while unfolding the luggage compartment cover. Removing/refitting the luggage cover 2 Press the two ends 4 to maximum and move them towards the centre of the luggage compartment cover, then tilt the cover. To fit the luggage cover, carry out this procedure in reverse.
|
