REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
  • Remove the rear wheels (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

WARNING In order to not damage the brake hose:
  • do not tension the hose,
  • do not twist the hose,
  • check that there is no contact with the surrounding components.



Note: When replacing brake pads, it is essential to replace the pads on the opposite side.

Rear axle components

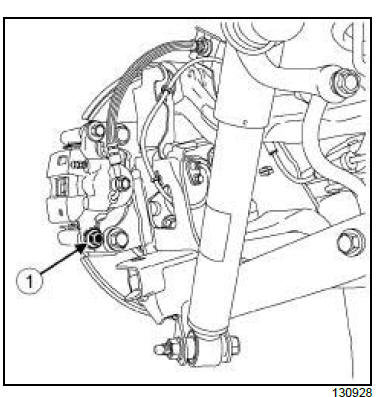

  • Remove the lower guide pin bolt (1) of the brake calliper.

Rear axle components

  • Rotate the rear brake calliper upwards.
  • Suspend the rear brake calliper.

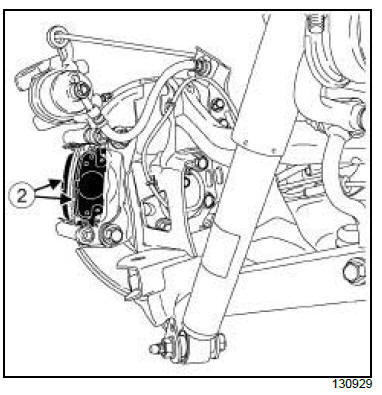

  • Remove the brake pads (2) from the brake calliper mountings.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always replace the guide pin bolts.
  • Check the thickness of the brake pads (see 30A, General information, Brake: Specifications, page 30A-7) .
  • Clean using a wire brush and BRAKE CLEANER (see Vehicle: Parts and consumables for the repair) (04B, Consumables - Products):
    • the calliper supports,
    • the callipers,
    • the guide pin bolts.

Rear axle components

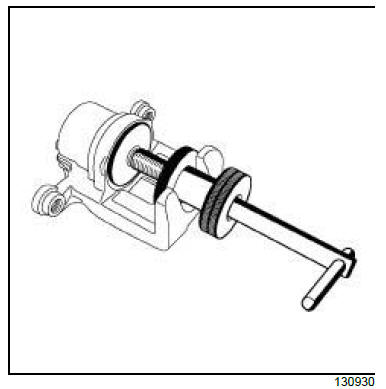

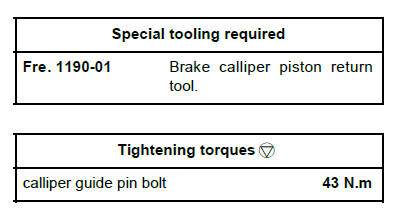

  • Push the calliper piston back using the tool (Fre.1190-01) until it is at the end of its bore.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit the rear brake pads.
  • Rotate the rear brake calliper downwards.
  • Refit the new lower guide pin bolt.

Rear axle components

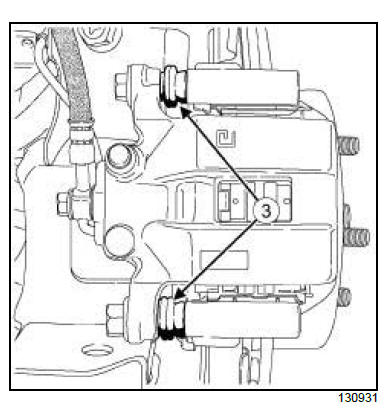

  • The guide pin bolt rubber boots (3) must be correctly positioned.
  • Torque tighten the calliper guide pin bolt (43 N.m).

III - FINAL OPERATION.

  • Refit the rear wheels (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) .
IMPORTANT To avoid any accident, bring the pistons, brake pads and brake discs into contact by depressing the brake pad several times.
