Renault Koleos Service Repair Manual: Rear floor rear section: General description

Renault Koleos Service Repair Manual / Panelwork / Rear lower structure / Rear floor rear section: General description

Note: The information contained in the following describes the general repair procedure for all vehicles having the same design for this part.

Before reading the following general information, make sure that there are no special notes associated with the vehicle. These special notes are specified if necessary in other parts of the sub-section dealing with the component.



Note: For a detailed description of a particular connection, see MR 400.

I - DESIGN OF THE STRUCTURAL COMPONENT

Rear lower structure

The distinctive feature of this part is that it combines the functions of the rear section of the rear floor and the emergency spare wheel mounting bracket.

Partial replacement is not possible for this part.

II - ASSEMBLY INSTRUCTIONS FOR A PARTIAL REPLACEMENT

Only the connections which are specific to the partial replacement by cutting are indicated.

WARNING If the mating faces of the parts to be welded are not accessible, make EGW plug welds to replace the original resistance welds (see MR 400).

If there are other issues regarding access to mating faces, the various replacement options are described in the basic instructions for structural bodywork repair (see MR 400).

Rear floor rear section: Description

Rear lower structure

There is only one way of replacing this part:

  • complete replacement.

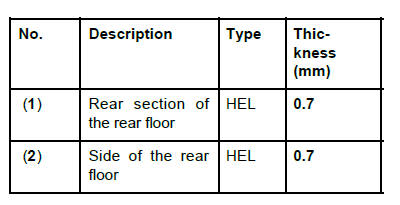

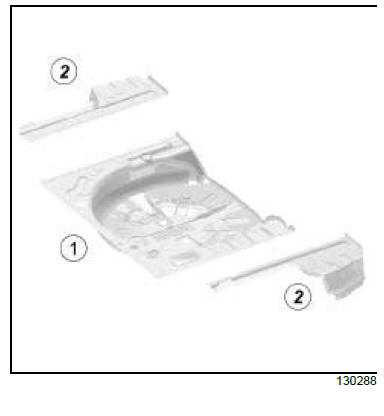

I - COMPOSITION OF THE SPARE PART

Rear lower structure

Rear lower structure

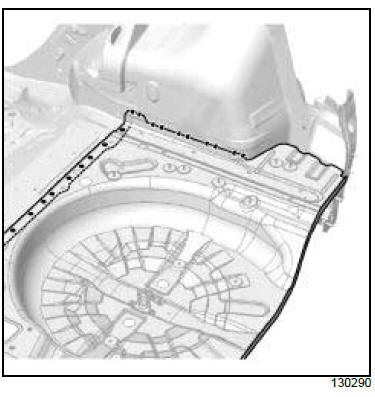

II - PART FITTED

Rear lower structure

WARNING If the spot welds cannot be made as they were originally using an electrical spot welding machine, these should be replaced with anchoring beading.
    Rear floor, front section: Description

    Rear side member assembly: Description
