Renault Koleos Owners Manual: Rear bench seat

Rear bench seat

To manually fold down the seatbacks

Ensure that the front seats are far enough forward.

Lower the headrests fully.

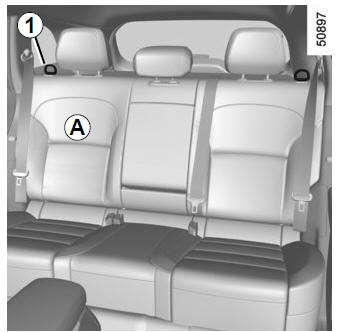

Pull the control 1 and lower the seatback A.

For safety reasons, carry out any adjustments when the vehicle is not being driven.

Rear bench seat

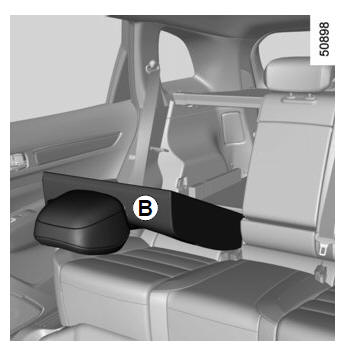

The configuration of the two-seat bench with the small seatback B pulled down, does not allow the central seat to be used as it would be impossible to buckle the seat belt (belt buckles inaccessible).

To replace the seatback, proceed in the reverse order to removal.

Refit the seatback and click it back into place.

When refitting the seatback, make sure it is correctly locked in place.

If seat covers are fitted, make sure these do not prevent the seatback latch from locking in.

Make sure that the seat belts are positioned correctly.

Reposition the headrests.



When moving the rear seats, ensure that nothing obstructs the anchorage points (passenger's arm or leg, a pet, gravel, cloth, toys, etc.).

Rear bench seat

To automatically fold down the seatbacks (flat position)

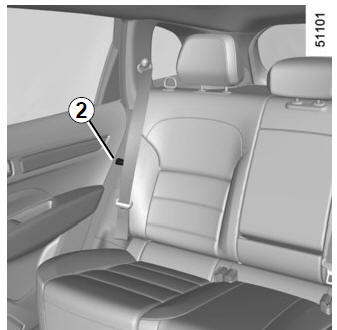

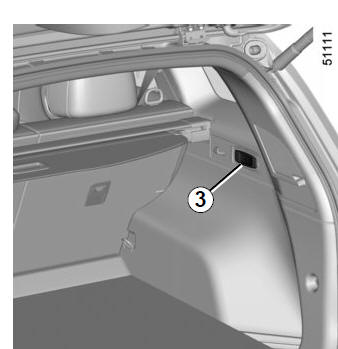

Place seat belt in hook 2 to avoid damaging the belt. From the boot, pulling the control 3 enables you to automatically unlock the rear bench seatbacks to get a flat floor.

When moving the rear seats, ensure that nothing obstructs the anchorage points (passenger's arm or leg, a pet, gravel, cloth, toys, etc.).

Rear bench seat

Conditions of use

  • Vehicle stationary;
  • tailgate open;
  • rear seat belts unlocked.

Operating fault If all user conditions have been fulfilled and the folding action still fails to operate, please contact an authorised dealer.

Rear bench seat

Use restriction

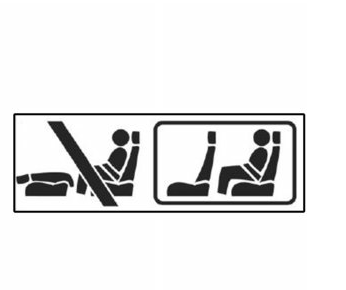

It is forbidden to drive with a seatback or a front seat folded down when there is a passenger occupying a rear seat.

For safety reasons, carry out any adjustments when the vehicle is not being driven.

Rear bench seat

Depending on the vehicle, if you lower the rear seats armrest, there is a rear seats heating controller on the rear armrest.

Rear heated seats (depending on the vehicle)

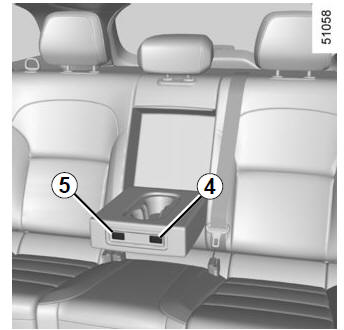

With the engine running, press switch 4 (for left side of the rear seat) or switch 5 (for right side of the rear seat). The indicator light on the switch lights on to confirm that the heating has been activated.

Press the left side of the switch to select the warmest setting or the right side of the switch to select the average setting.

The middle position of the switch is off.

The indicator light in the switch lights off.

The system, which has a thermostat, decides whether heating is needed depending on the position selected and stops heating once a certain temperature has been reached.

For safety reasons, carry out any adjustments when the vehicle is not being driven.
