Renault Koleos Owners Manual: Rear headrests

Rear headrests

Position for use

Lift the headrest to maximum height, then lower it until it locks.

To remove a headrest

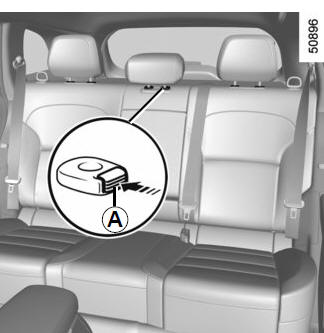

Raise the headrest as far as it will go, then press button A and remove the headrest.

To refit a headrest

Insert the rods in the holes, press the button A and lower the headrest. Check that it is correctly locked in place.

Rear headrests

Centre seat headrest storage position

Press the button A and lower the central headrest 1 completely.

When the headrest is set at the lowest position, this is for storage only. It should not be in this position when a seat is occupied.

Rear headrests

Note: When the headrest need to be reassembled, pay attention to its position which is drawn in the label.

The headrest is a safety component; check that it is fitted and in the correct position.

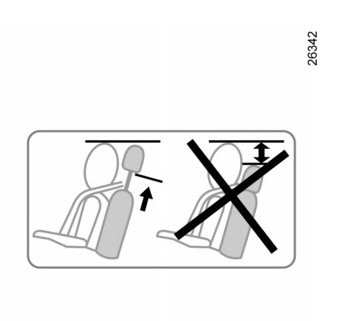

The top of the headrest should be as close as possible to the top of the head.
