Renault Koleos Service Repair Manual: Rear seat belt buckle: Removal - Refitting

Renault Koleos Service Repair Manual / Electrical equipment / Air bag and pretensioners / Rear seat belt buckle: Removal - Refitting

Electrical equipment

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

  • Pull the tabs (1) on each side of the bench seat.
  • Fold the rear seat base down in the direction of the arrows.

Electrical equipment

  • Remove:

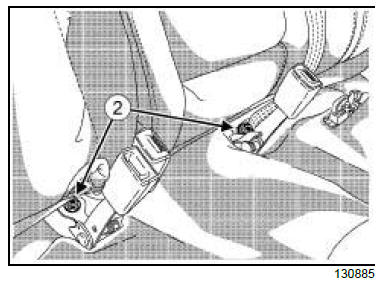

    • the bolts (2) from the rear seat belt buckles,
    • the rear seat belt buckles.

REFITTING

REFITTING OPERATION FOR PART CONCERNED

  • Refit the rear seat belt buckles.

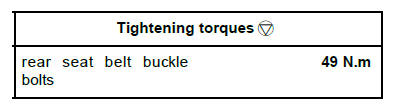

  • Torque tighten the rear seat belt buckle bolts (49 N.m).
  • Fit the rear seat base in place.
