Renault Koleos Service Repair Manual: Speed sensor: Removal - Refitting

6-SPEED AUTOMATIC GEARBOX

Automatic gearbox

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the air inlet sleeve
    • the battery
    • the battery tray

Automatic gearbox

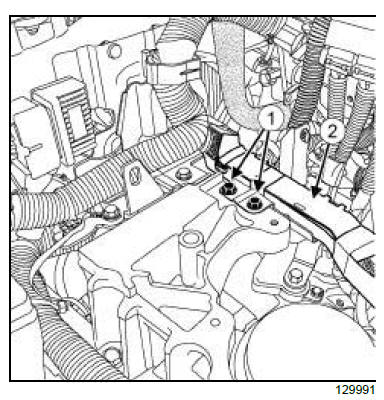

  • Remove the bolts (1) from the engine wiring harness channel.
  • Remove the wiring harness channel (2) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

1 - Input speed sensor

Automatic gearbox

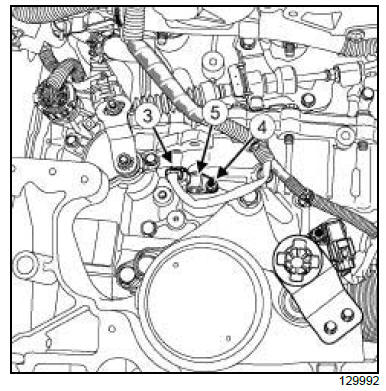

  • Disconnect the input speed sensor connector (3) .
  • Remove:
    • the input speed sensor bolt (4) ,
    • the input speed sensor (5) ,
    • the O-ring from the input speed sensor.

2 - Output speed sensor

Automatic gearbox

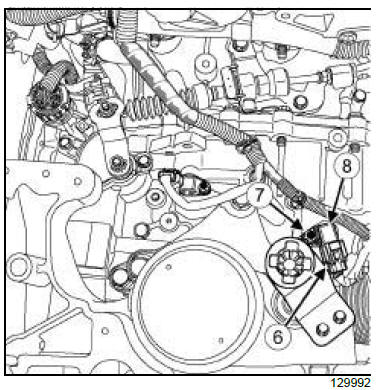

  • Disconnect the output speed sensor connector (6) .
  • Remove:
    • the output speed sensor bolt (7) ,
    • the output speed sensor (8) ,
    • the O-ring from the output speed sensor.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always replace the O-ring.

II - REFITTING OPERATION FOR PART CONCERNED

1 - Input speed sensor

  • Refit:
    • the new O-ring on the input speed sensor,
    • the input speed sensor,
    • the input speed sensor bolt.

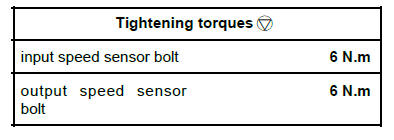

  • Torque tighten the input speed sensor bolt (6 N.m).
  • Connect the input speed sensor connector.

2 - Output speed sensor

  • Refit:
    • the new O-ring on the output speed sensor,
    • the output speed sensor,
    • the output speed sensor bolt.
  • Torque tighten the output speed sensor bolt (6 N.m).
  • Connect the output speed sensor connector.

III - FINAL OPERATION.

  • Refit:
    • the engine wiring harness channel,
    • the engine wiring harness channel bolts.

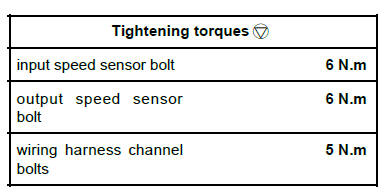

  • Torque tighten the wiring harness channel bolts (5 N.m).
  • Remove:
    • the battery tray
    • the battery
    • the air inlet sleeve.

FK0 or FK8

Automatic gearbox

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

REMOVAL

I - REMOVAL PREPARATION OPERATION

1 - Input speed sensor

  • Remove the air inlet sleeve.
  • Disconnect the battery.

2 - Output speed sensor

  • Remove:
    • the battery
    • the battery tray

II - OPERATION FOR REMOVAL OF PART CONCERNED

1 - Input speed sensor

Automatic gearbox

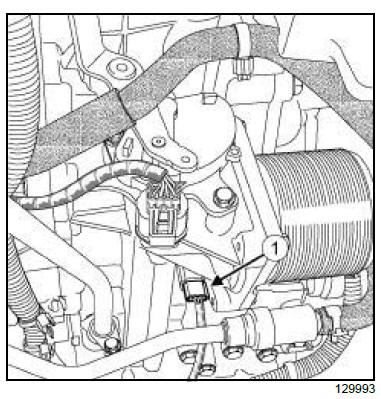

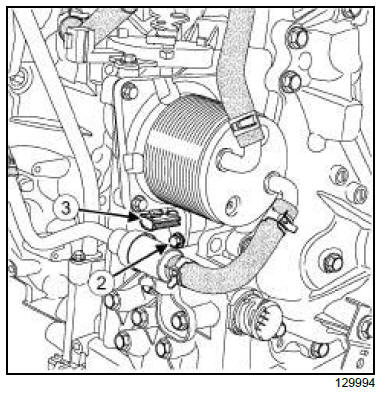

  • Disconnect the input speed sensor connector (1) .

Automatic gearbox

  • Remove:
    • the input speed sensor bolt (2) ,
    • the input speed sensor (3) ,
    • the O-ring from the input speed sensor.

2 - Output speed sensor

Automatic gearbox

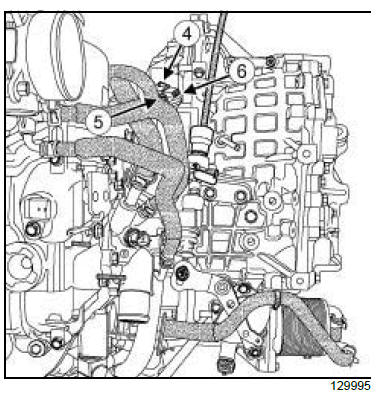

  • Disconnect the output speed sensor connector (4) .
  • Remove:
    • the output speed sensor bolt (5) ,
    • the output speed sensor (6) ,
    • the O-ring from the output speed sensor.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always replace the O-ring.

II - REFITTING OPERATION FOR PART CONCERNED

1 - Input speed sensor

  • Refit:
    • the new O-ring on the input speed sensor,
    • the input speed sensor,
    • the input speed sensor bolt.
  • Torque tighten the input speed sensor bolt (6 N.m).
  • Connect the input speed sensor connector.

2 - Output speed sensor

  • Refit:
    • the new O-ring on the output speed sensor,
    • the output speed sensor,
    • the output speed sensor bolt.
  • Torque tighten the output speed sensor bolt (6 N.m).
  • Connect the output speed sensor connector.

III - FINAL OPERATION.

1 - Input speed sensor

  • Refit the air inlet sleeve.
  • Connect the battery.

2 - Output speed sensor

  • Refit:
    • the battery tray
    • the battery
