6-SPEED AUTOMATIC GEARBOX

Automatic gearbox

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
IMPORTANT To prevent the vehicle from falling, lash it to the vehicle lift using a strap.
  • Remove the automatic gearbox.

Automatic gearbox

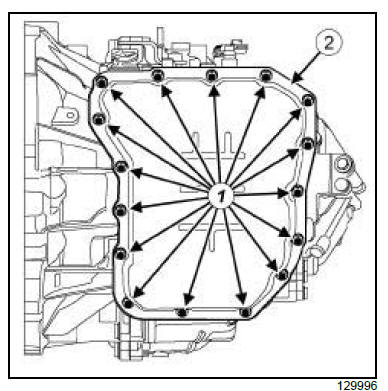

  • Remove:
    • the hydraulic distributor housing bolts (1) ,
    • the hydraulic distributor housing (2) ,
    • the hydraulic distributor housing seal.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Automatic gearbox

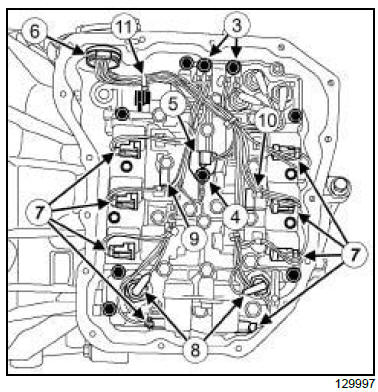

  • Remove:
    • the earth bolts (3) ,
    • the bolt (4) from the oil temperature sensor,
    • the oil temperature sensor bracket (5) .
  • Disconnect:
    • the internal wiring connector (6) ,
    • the solenoid connectors (7) ,
    • the hydraulic distributor wiring connectors (8) ,
  • The hydraulic distributor oil temperature sensor (9) .
  • Unclip the hydraulic distributor wiring from the wiring retainer (10) .
  • Remove the wiring from the hydraulic distributor (11)

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always replace the hydraulic distributor housing seal.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit the hydraulic distributor wiring.
  • Connect:
    • the oil temperature sensor on the hydraulic distributor,
    • the hydraulic distributor wiring connectors.
    • the solenoid connectors,
    • the internal wiring connector.
  • Clip the hydraulic distributor wiring on the wiring retainer.
  • Refit:
    • the oil temperature sensor bracket,
    • the bolt on the oil temperature sensor,
    • the earth bolts.

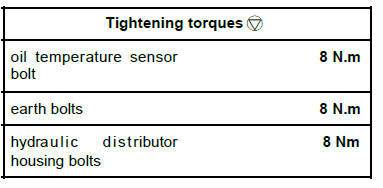

  • Torque tighten:
    • the oil temperature sensor bolt (8 N.m),
    • the earth bolts (8 N.m).

III - FINAL OPERATION.

  • Refit:
    • the new hydraulic distributor housing seal on the hydraulic distributor housing,
    • the hydraulic distributor housing,
    • the hydraulic distributor casing bolts.
  • Torque tighten the hydraulic distributor housing bolts (8 Nm).
  • Refit the automatic gearbox.
