Renault Koleos Service Repair Manual: Front side seat belt: Removal - Refitting

Electrical equipment

REMOVAL

I - REMOVAL PREPARATION OPERATION

IMPORTANT Never handle the pyrotechnic systems (pretensioners or airbags) near to a source of heat or naked flame - they may be triggered.



IMPORTANT To prevent the pyrotechnic components from being permanently deactivated or triggered (airbags or pretensioners), wait for at least 3 min after disconnecting the battery.
  • Disconnect the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .
  • Remove:
    • the front sill panel trim (see Front door sill lining: Removal - Refitting) (71A, Body internal trim),
    • the rear inner sill trim (see Rear door sill lining: Removal - Refitting) (71A, Body internal trim),
    • the B-pillar trim (see B-pillar trim: Removal - Refitting) (71A, Body internal trim).
  • Move the front seat as far forward as possible.
  • Partially pull up the edge of the floor carpet around the B-pillar trim.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

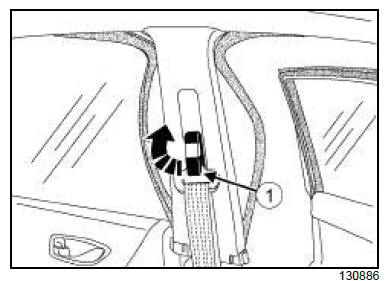

  • Remove cover (1) .

Electrical equipment

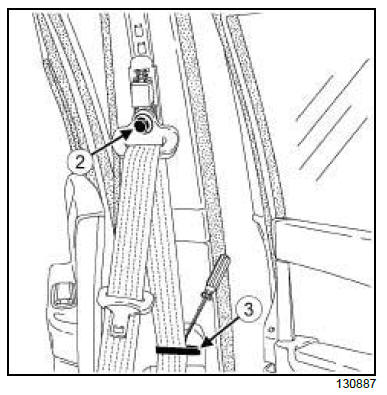

  • Remove the front side seat belt upper bolt (2) .
  • Detach the front side seat belt guide (3) .

Electrical equipment

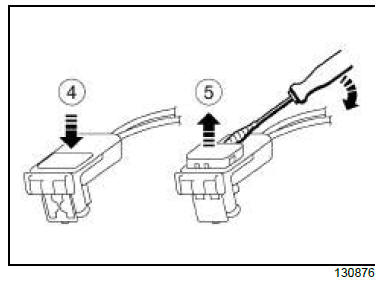

Note: To disconnect the airbag connector, insert a flat-blade screwdriver wrapped in adhesive tape in the notch (4) , lift the security device (5) and disconnect the connector

1 - Driver's side front side seat belt

Electrical equipment

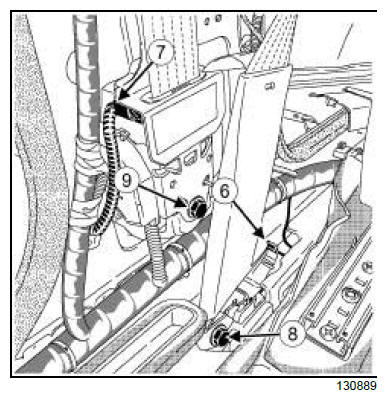

  • Disconnect:
    • the connector (6) for the front lap belt pretensioner,
    • the connector (7) for the front pyrotechnic inertia reel.
  • Remove:
    • the bolt (8) from the front lap belt pretensioner,
    • the front lap belt pretensioner,
    • the front pyrotechnic inertia reel bolt (9) ,
    • the front pyrotechnic seat belt inertia reel,
    • the " front side seat belt - front pyrotechnic inertia reel - front lap belt pretensioner " assembly.

2 - Passenger side front side seat belt

Electrical equipment

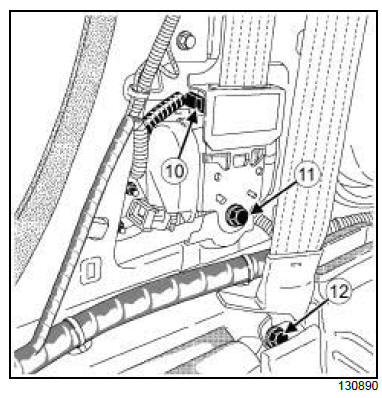

  • Disconnect the connector (10) from the front pyrotechnic inertia reel.
  • Remove:
    • the front pyrotechnic inertia reel bolt (11) ,
    • the lower bolt (12) for the front side seat belt,
    • the " front side seat belt - front pyrotechnic inertia reel " assembly.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

1 - Driver's side front side seat belt

  • Fit the " front side seat belt - front pyrotechnic inertia reel - front lap belt pretensioner " assembly in place.
  • Refit:
    • the front lap belt pretensioner,
    • the front lap belt pretensioner bolt,
    • the front pyrotechnic seat belt inertia reel,
    • the front pyrotechnic inertia reel bolt.

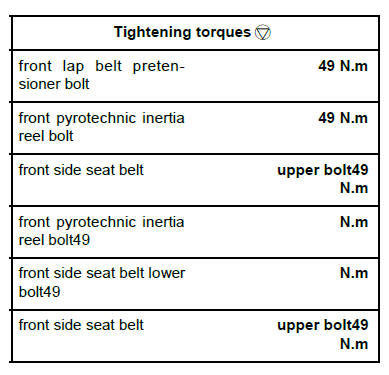

  • Torque tighten:
    • the front lap belt pretensioner bolt (49 N.m),
    • the front pyrotechnic inertia reel bolt (49 N.m).
  • Connect:
    • the connector for the front lap belt pretensioner,
    • the connector for the front pyrotechnic inertia reel.
  • Connect the front pyrotechnic inertia reel connector.
  • Refit:
    • the front side seat belt guide,
    • the upper bolt for the front side seatbelt.
  • Torque tighten the front side seat belt (upper bolt49 N.m).
  • Refit the cover.

2 - Passenger side front side seat belt

  • Fit the " front side seat belt - front pyrotechnic inertia reel " assembly in place.
  • Refit:
    • the front pyrotechnic seat belt inertia reel,
    • the front pyrotechnic inertia reel bolt,
    • the lower bolt for the front side seat belt.
  • Torque tighten:
    • the front pyrotechnic inertia reel bolt49 (N.m),
    • the front side seat belt lower bolt49 (N.m).
  • Connect the front pyrotechnic inertia reel connector.
  • Refit:
    • the front side seat belt guide,
    • the upper bolt for the front side seatbelt.
  • Torque tighten the front side seat belt (upper bolt49 N.m).
  • Refit the cover.

II - FINAL OPERATION.

  • Position the floor carpet.
  • Refit:
    • the B-pillar trim (see B-pillar trim: Removal - Refitting) (71A, Body internal trim),
    • the rear inner sill trim (see Rear door sill lining: Removal - Refitting) (71A, Body internal trim),
    • the front sill panel trim (see Front door sill lining: Removal - Refitting) (71A, Body internal trim).
  • Connect the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .
IMPORTANT To eliminate the risk of any accident, do not reuse pyrotechnic components.

It is essential to destroy pretensioners or airbags before scrapping a vehicle or a part only (see 88C, Air bag and Pretensioners, Airbags and pretensioners: Recycling - Destruction, page 88C-7) .
