Renault Koleos Service Repair Manual: Rear opening element light: Removal - Refitting

Renault Koleos Service Repair Manual / Electrical equipment / Rear lighting / Rear opening element light: Removal - Refitting

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

Note: Protect the bodywork varnish using a cloth if using a flat-blade screwdriver.

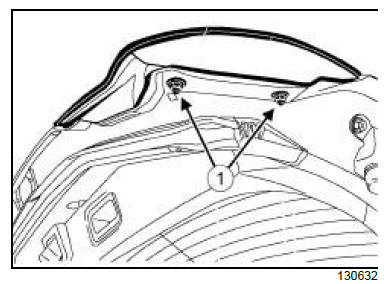

  • Remove:
    • the tailgate light nuts (1) ,
    • the tailgate light using a flat-blade screwdriver.
  • Disconnect the connectors.

Electrical equipment

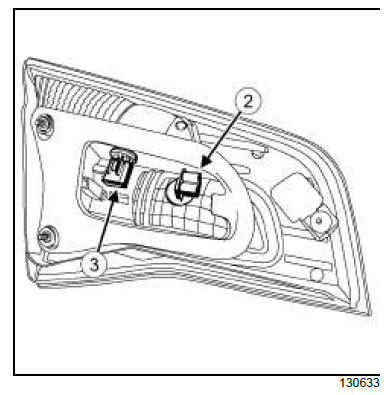

  • Remove:
    • the reversing light bulb (2) ,
    • the side light bulb (3) .

REFITTING

REFITTING OPERATION FOR PART CONCERNED

  • Use an approved bulb for replacement:
    • P12V / W5W for the side light,
    • P12V / W16W for the reversing light.
  • Refit the bulbs.
  • Connect the connectors.

Electrical equipment

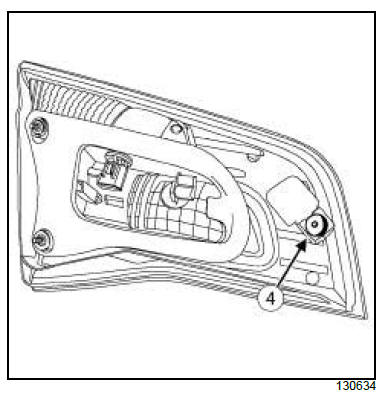

  • Refit:
    • the tailgate light on the tailgate using the centring device (4) ,
    • the tailgate light nuts.
