REMOVAL - REFITTING

I - REMOVAL PREPARATION OPERATION

1 - Rear light on wing

  • Remove the bulb holder (see 81A, Rear lighting, Rear wing light: Removal - Refitting, page 81A-3) .

2 - Tailgate light

  • Remove the bulb holder (see 81A, Rear lighting, Rear opening element light: Removal - Refitting, page 81A-5) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

1 - Rear light on wing

Electrical equipment

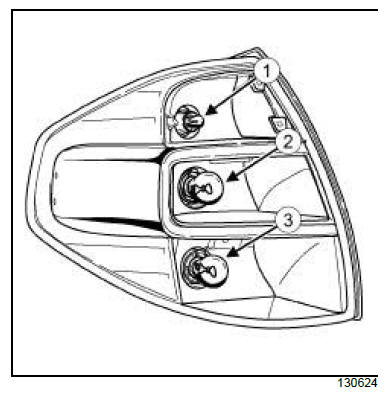

  • Remove:
    • the side light bulb (1) ,
    • the direction indicator bulb (2) ,
    • the brake light bulb (3) .

2 - Tailgate light

Electrical equipment

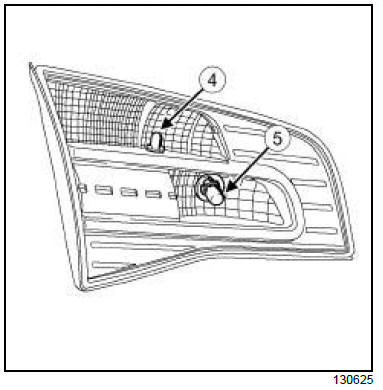

  • Remove:
    • the side light bulb (4) ,
    • the reversing light bulb (5) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

1 - Rear light on wing

  • Refit:
    • the approved P21W bulb for the brake light,
    • the approved KHA 12V 21W bulb for the direction indicator light,
    • the approved W5W bulb for the side light.

2 - Tailgate light

  • Refit:
    • the approved P12V/W16W bulb for the reversing light,
    • the approved W5W bulb for the side light.

II - FINAL OPERATION.

1 - Rear light on wing

  • Refit the bulb holder (see 81A, Rear lighting, Rear wing light: Removal - Refitting, page 81A-3) .

2 - Tailgate light

  • Refit the bulb holder (see 81A, Rear lighting, Rear opening element light: Removal - Refitting, page 81A-5) .
