REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the rear door sill lining (see 71A, Body internal trim, Rear door sill lining: Removal - Refitting, page 71A-8) ,
    • the C-pillar lower trim (see 71A, Body internal trim, C-pillar lower trim: Removal - Refitting, page 71A-9) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Body internal trim

  • Open the covers.
  • Remove:

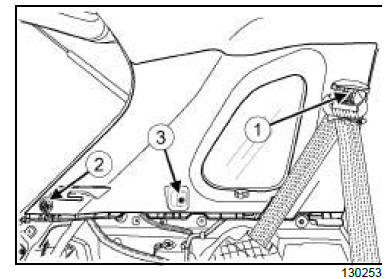

    • the rear seat belt upper bolt (1) ,
    • the bolt (2) ,
    • bolt (3) .
  • Disconnect the connector.
  • Remove the C-pillar upper trim.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Check the condition of the clips and replace if necessary.

II - REFITTING OPERATION FOR PART CONCERNED

  • Connect the supply connector.
  • Refit the C-pillar upper trim.
  • Torque tighten the rear seat belt upper bolt (49 N.m) (1) .
  • Refit:
    • the bolt (2) ,
    • the bolt (3) ,
    • the covers.

III - FINAL OPERATION.

  • Refit:
    • the C-pillar lower trim (see 71A, Body internal trim, C-pillar lower trim: Removal - Refitting, page 71A-9) ,
    • the rear door sill lining (see 71A, Body internal trim, Rear door sill lining: Removal - Refitting, page 71A-8) .
