Renault Koleos Service Repair Manual: Brake pedal: Removal - Refitting

LEFT-HAND DRIVE

Mechanical component controls

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
  • Remove:
    • the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the A pillar air distribution duct (see Front footwell air distribution duct: Removal - Refitting) ,(61A, Heating),
    • the left-hand trim on the centre panel (see Centre console lower front panel: Removal - Refitting) (57A, Interior equipment),
    • the brake - accelerator pedal assembly (see 37A, Mechanical component controls, Accelerator and brake pedal assembly: Removal - Refitting, page 37A-23) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Mechanical component controls

  • Remove:

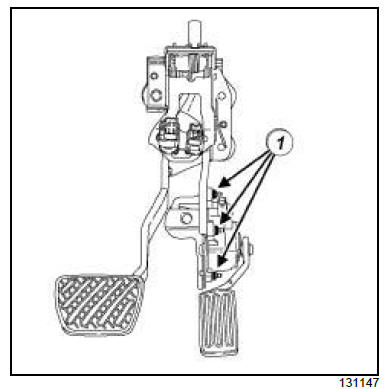

    • the accelerator pedal nuts (1) ,
    • the accelerator pedal of the brake-accelerator pedal assembly,
    • the brake pedal.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the brake pedal,
    • the accelerator pedal on the brake-accelerator pedal assembly,
    • the accelerator pedal nuts.
  • Torque tighten the accelerator pedal nuts (5 N.m).

II - FINAL OPERATION.

  • Refit:
    • the brake - accelerator pedal assembly (see 37A, Mechanical component controls, Accelerator and brake pedal assembly: Removal - Refitting, page 37A-23) ,
    • the left-hand trim on the centre panel (see Centre console lower front panel: Removal - Refitting) (57A, Interior equipment),
    • the A pillar air distribution duct (see Front footwell air distribution duct: Removal - Refitting) ,(61A, Heating),
    • the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment).

RIGHT-HAND DRIVE

Mechanical component controls

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
IMPORTANT To prevent the pyrotechnic components from being permanently deactivated or triggered (airbags or pretensioners), wait for at least 3 minutes after disconnecting the battery.
  • Disconnect the battery (see Battery: Removal - Refitting) (80A, Battery).
  • Remove:
    • the dashboard (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the dashboard cross member (see Dashboard cross member: Removal - Refitting) (42A, Upper front structure),
    • the brake - accelerator pedal assembly (see 37A, Mechanical component controls, Accelerator and brake pedal assembly: Removal - Refitting, page 37A-23) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Mechanical component controls

  • Remove:

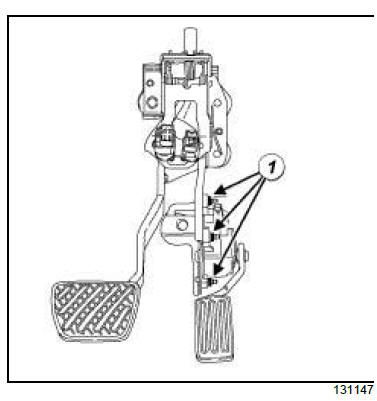

    • the accelerator pedal nuts (1) ,
    • the accelerator pedal from the brake-accelerator pedal assembly,
    • the brake pedal.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the brake pedal,
    • the accelerator pedal on the brake-accelerator pedal assembly,
    • the accelerator pedal nuts.
  • Torque tighten the accelerator pedal nuts (5 N.m).

II - FINAL OPERATION.

  • Refit:
    • the brake - accelerator pedal assembly (see 37A, Mechanical component controls, Accelerator and brake pedal assembly: Removal - Refitting, page 37A-23) .
    • the dashboard cross member (see Dashboard cross member: Removal - Refitting) (42A, Upper front structure),
    • the dashboard (see Dashboard: Removal - Refitting) (57A, Interior equipment).
    Accelerator pedal: Removal - Refitting

    Brake pedal switch: Removal - Refitting
