Renault Koleos Service Repair Manual: Accelerator pedal: Removal - Refitting

Renault Koleos Service Repair Manual / Chassis / Mechanical component controls / Accelerator pedal: Removal - Refitting

LEFT-HAND DRIVE

Mechanical component controls

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the dashboard lower cover (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the dashboard lower trim on the driver's side (see Front air distribution duct: Removal - Refitting) (61A, Heating system),
    • the left-hand trim on the centre panel (see Centre console lower front panel: Removal - Refitting) (57A, Interior equipment).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Mechanical component controls

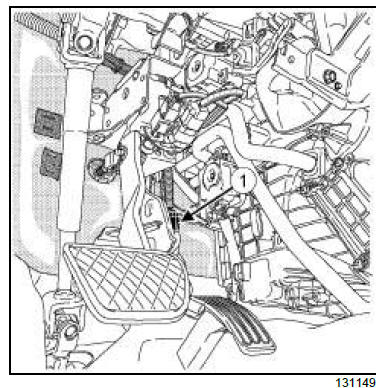

  • Disconnect the accelerator pedal position sensor connector (1) .

Mechanical component controls

  • Remove:

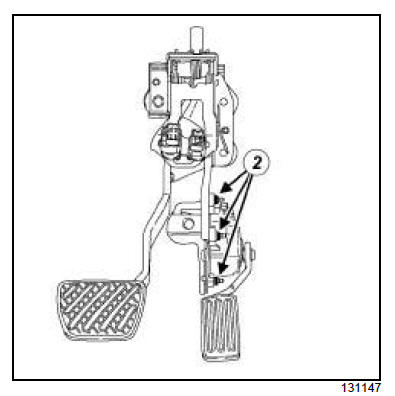

    • the accelerator pedal nuts (2) ,
    • the accelerator pedal from the brake-accelerator pedal assembly.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the accelerator pedal on the brake-accelerator pedal assembly.
    • the accelerator pedal nuts.
  • Torque tighten the accelerator pedal nuts (5 N.m).
  • Connect the accelerator pedal position sensor connector.

II - FINAL OPERATION.

  • Refit:
    • the left-hand trim on the centre panel (see Centre console lower front panel: Removal - Refitting) (57A, Interior equipment),
    • the dashboard lower trim on the driver's side (see Front air distribution duct: Removal - Refitting) (61A, Heating System),
    • the dashboard lower cover (see Dashboard: Removal - Refitting) (57A, Interior equipment).

RIGHT-HAND DRIVE

Mechanical component controls

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
  • Disconnect the battery (see Battery: Removal - Refitting) (80A, Battery).
  • Remove:
    • the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the A-pillar air distribution duct (see Front air distribution duct: Removal - Refitting) (61A, Heating system).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Mechanical component controls

  • Remove:

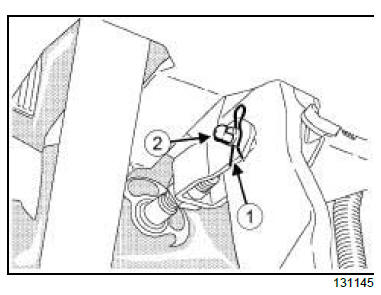

    • the brake pedal circlip (1) ,
    • the connector shaft (2) between the brake pedal and the brake servo pushrod.

Mechanical component controls

  • Disconnect:

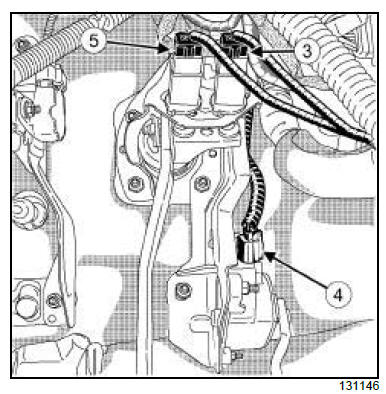

    •  the brake light switch connector (3) ,
    •  the accelerator pedal sensor connector (4) .

CRUISE CONTROL

  • Disconnect the connector (5) from the brake switch.

Mechanical component controls

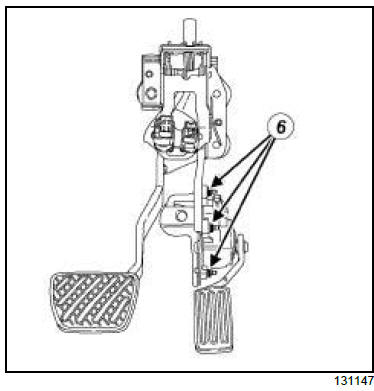

  • Remove the accelerator pedal nuts (6) .

Mechanical component controls

  • Remove:

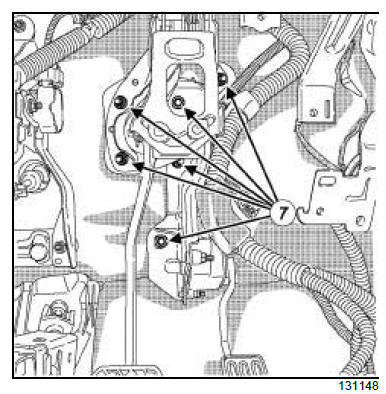

    • the nuts (7) from the brake-accelerator pedal assembly,
    • the accelerator pedal from the brake-accelerator pedal assembly.
Note: It is not necessary to remove the brake-accelerator pedal assembly.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the accelerator pedal on the brake-accelerator pedal assembly,
    • the nuts on the brake-accelerator pedal assembly.

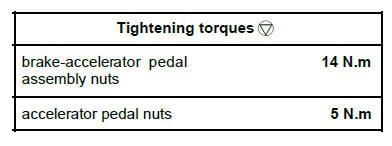

  • Torque tighten the brake-accelerator pedal assembly nuts (14 N.m).
  • Refit the accelerator pedal nuts.
  • Torque tighten the accelerator pedal nuts (5 N.m).
  • Refit:
    • the connecting shaft between the brake pedal and the brake servo pushrod,
    • the brake pedal circlip.
  • Connect:
    • the brake light switch connector,
    • the accelerator position sensor connector.

CRUISE CONTROL

  • Connect the accelerator pedal position sensor connector.



II - FINAL OPERATION.

  • Refit:
    • the A-pillar air distribution duct (see Front air distribution duct: Removal - Refitting) (61A, Heating system),
    • the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment),
  • Connect the battery (see Battery: Removal - Refitting) (80A, Battery).
    Accelerator and brake pedal assembly: Removal - Refitting

    Brake pedal: Removal - Refitting
